Rocker Panel Molding: Disassembly

  1. REMOVE ROCKER PANEL MOLDING CLIP
    1. Remove the 11 rocker panel molding clips.

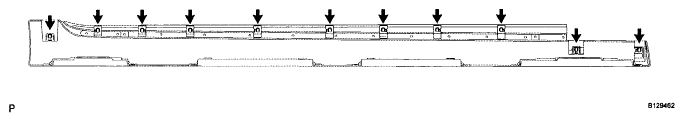

      Fig 1: Locating Rocker Panel Molding Clips
      G05833645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 1 ROCKER PANEL MOLDING PROTECTOR
    1. Remove the 2 No. 1 rocker panel molding protectors.

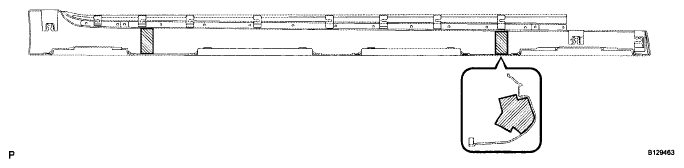

      Fig 2: Identifying No. 1 Rocker Panel Molding Protectors
      G05833646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 2 ROCKER PANEL MOLDING PROTECTOR
    1. Remove the No. 2 rocker panel molding protector.

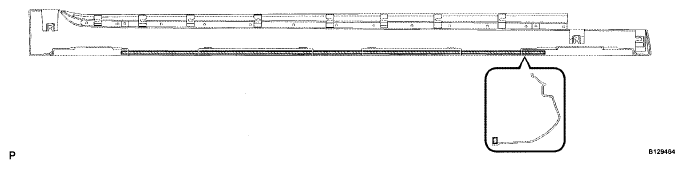

      Fig 3: Identifying No. 2 Rocker Panel Molding Protector
      G05833647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 5 ROCKER PANEL MOLDING PROTECTOR
    1. Remove the 2 No. 5 rocker panel molding protectors.
      2. Fig 4: Identifying No. 5 Rocker Panel Molding Protectors
      G05833648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 6 ROCKER PANEL MOLDING PROTECTOR
    1. Remove the 2 No. 6 rocker panel molding protectors.

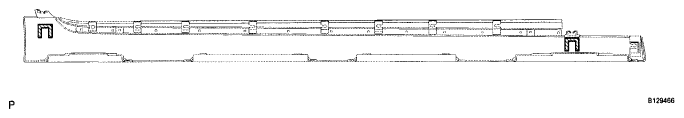

      Fig 5: Identifying No. 6 Rocker Panel Molding Protectors
      G05833649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE ROCKER PANEL MOLDING
