Rear Door Window Frame Molding: Components

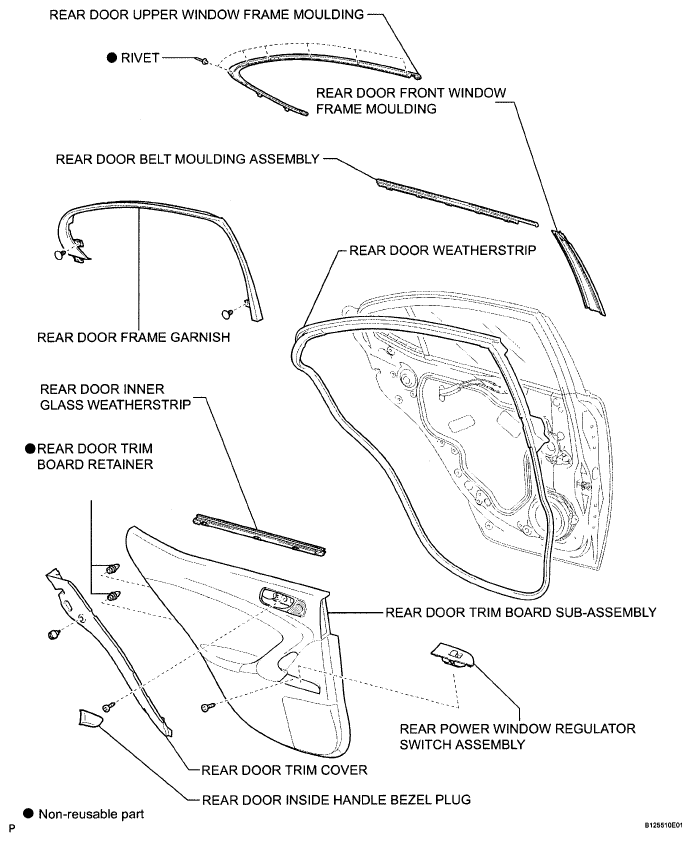

Fig 1: Identifying Rear Door Window Frame Molding Components

G05833662

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
