Home >> Lexus >> 2008 >> IS 250 AWD >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Exterior >> Front Door Window Frame Molding >> Components

Front Door Window Frame Molding: Components

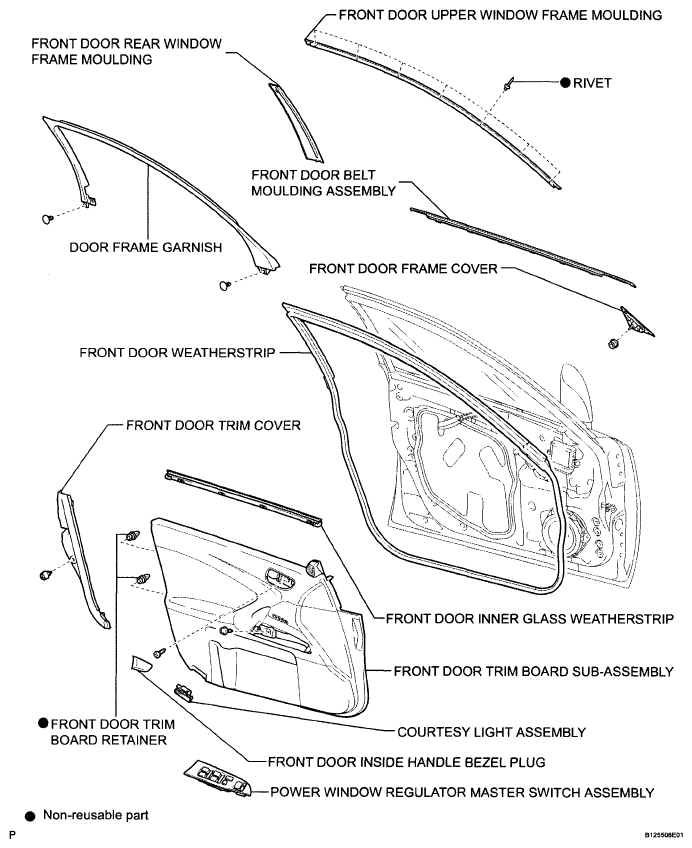

Fig 1: Identifying Front Door Window Frame Molding Components

G05833654

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
