Home >> Lexus >> 2008 >> IS 250 AWD >> Repair and Diagnosis >> Accessories & Equipment >> Warning Systems >> Park Assist / Monitoring >> Rear View Monitor System >> Display Signal Circuit between Multi-display and Television Camera Assembly >> Wiring Diagram

Display Signal Circuit between Multi-display and Television Camera Assembly: Wiring Diagram

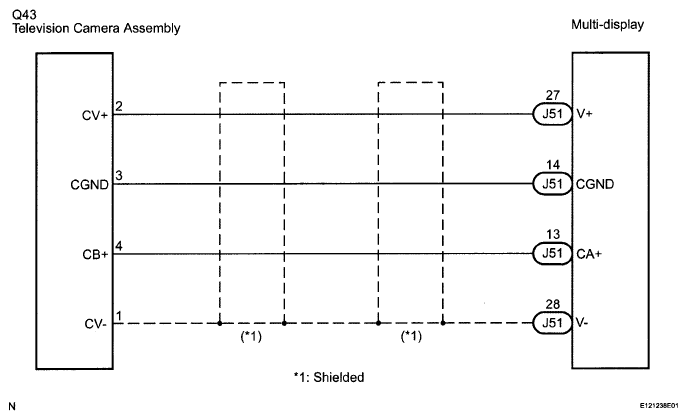

Fig 1: Display Signal Circuit Between Multi-Display And Television Camera Assembly - Wiring Diagram
G05832788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
