Inspection Procedure

1. Remove the ultrasonic sensor.
2. Measure the resistance of the sensor.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Condition	Specified Condition
   S (D1-2) - E (D1-1)	Always	600 to 1,200 kΩ

   NOTE:

   • Set the tester to the 100 kΩ range before performing the measurement.
   Fig 1: Inspecting No. 1 Ultrasonic Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE NO. 1 ULTRASONIC SENSOR (FRONT RIGHT SENSOR)

OK: Go to next step

1. Disconnect the Q37 ECU connector.
2. Disconnect the D1 sensor connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Condition	Specified Condition
   S1 (Q37-5) - S (D1-2)	Always	Below 1 Ω
   E1 (Q37-18) - E (D1-1)	Always	Below 1 Ω
   S1 (Q37-5) - Body ground	Always	10 kΩ or higher
   E1 (Q37-18) - Body ground	Always	10 kΩ or higher

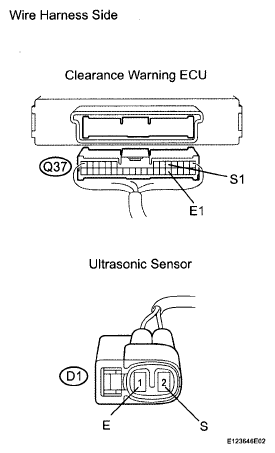

Fig 2: Checking Wire Harness (Clearance Warning ECU - Ultrasonic Sensor)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE CLEARANCE WARNING ECU
