Vehicle Speed Signal Circuit between Multi-display and Combination Meter: Wiring Diagram

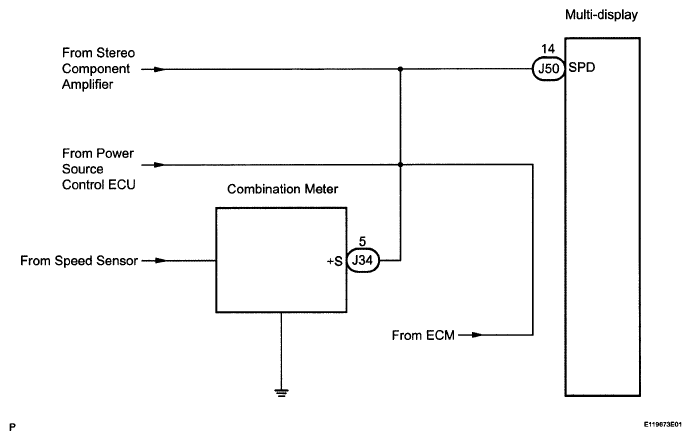

Fig 1: AVC-LAN - Wiring Diagram

G05832654

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
