Navigation Voice Speaker Circuit: Wiring Diagram

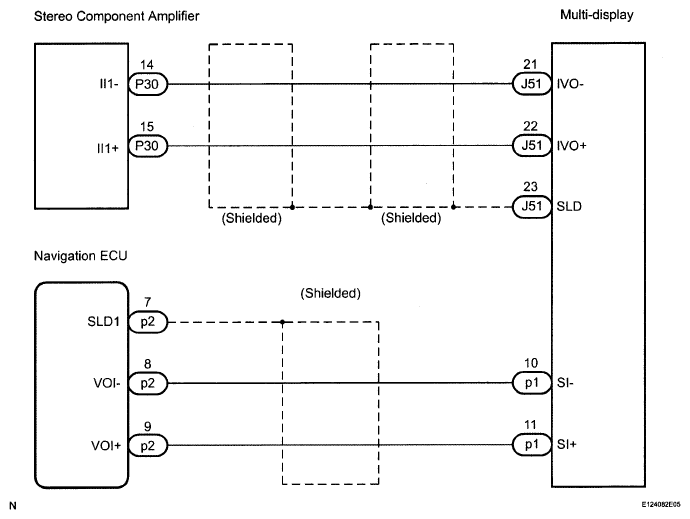

Fig 1: Stereo Component Amplifier - Wiring Diagram

G05832666

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
