DTC 5C-40 Camera Picture Error: Wiring Diagram

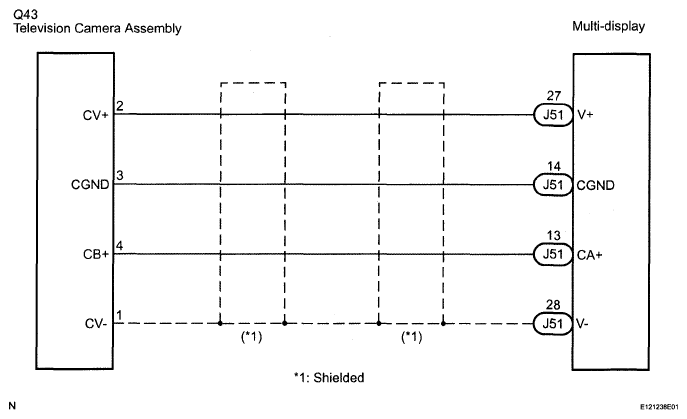

Fig 1: Television Camera Assembly - Wiring Diagram

G05832572

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
