Inspection Procedure

  1. OPERATION OF SPEEDOMETER
    1. Drive the vehicle and check if the function of the speedometer on the combination meter is normal.

      OK:

      Actual vehicle speed and the speed indicated on the speedometer are the same.

      HINT:

      The vehicle speed sensor is functioning normally when the indication on the speedometer is normal.

    NG: CHECK COMBINATION METER

    OK: Go to next step

  2. INSPECT STEREO COMPONENT AMPLIFIER
    1. Disconnect the stereo component amplifier connector P30.
    2. Measure the voltage.
      1. Jack up either one of the drive wheels.
      2. Move the shift lever to the neutral position.
      3. Turn the engine switch on (IG).

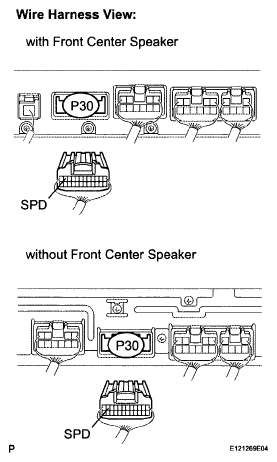

        Fig 1: Identifying Stereo Component Amplifier Connector P30
        G05828186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Measure the voltage between terminal SPD of the stereo component amplifier and body ground when the drive wheels are turned slowly.

        OK:

        Voltage pulses as shown in the illustration.

      Fig 2: Voltage Pulses For SPD
      G04967013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: Go to step   3

    OK: REPLACE STEREO COMPONENT AMPLIFIER

  3. CHECK HARNESS AND CONNECTOR (COMBINATION METER - STEREO COMPONENT AMPLIFIER)
    1. Disconnect the stereo component amplifier connector P30 and combination meter connector J34.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester connection Condition Specified condition
      SPD - +S Engine switch off Below 1 Ω

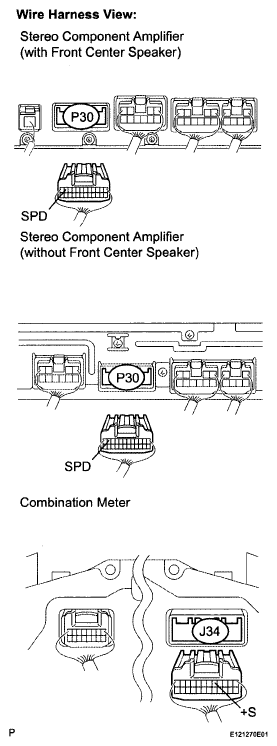

    3. Fig 3: Identifying Stereo Component Amplifier Connector Terminal P30 And Combination Meter Connector Terminal J34
      G05828188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (COMBINATION METER - STEREO COMPONENT AMPLIFIER)
    1. Disconnect the stereo component amplifier connector P30 and combination meter connector J34.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester connection Condition Specified condition
      SPD - Body ground Engine switch off 10 kΩ or higher

      HINT:

      If the resistance between terminal SPD and body ground is less than 10 kΩ, there may be a short in a wire harness, connector, or an ECU that is connected to the SPD signal wire.

      Fig 4: Identifying Stereo Component Amplifier Connector Terminal P30 And Combination Meter Connector Terminal J34
      G05828188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OR CHECK EACH ECU

    OK: REPLACE COMBINATION METER
