Steering Pad Switch Circuit: Wiring Diagram

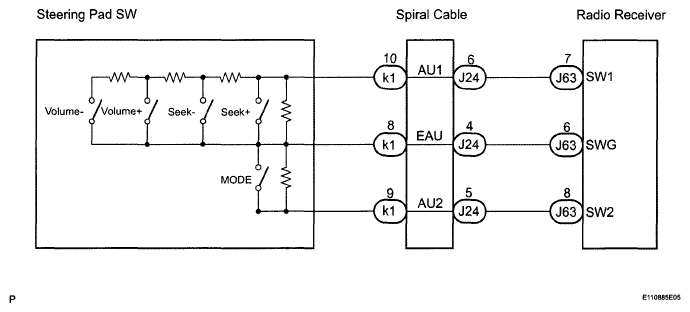

Fig 1: Steering Pad Switch And Radio Receiver - Wiring Diagram

G05828155

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
