Speaker Circuit: Wiring Diagram

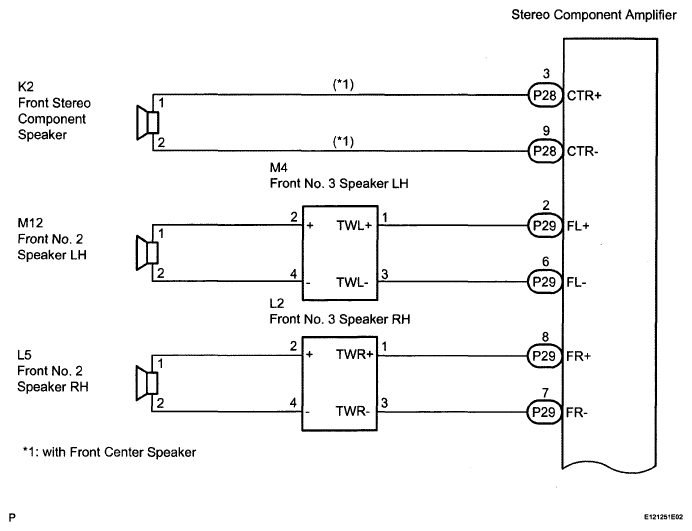

Fig 1: Stereo Component Amplifier - Wiring Diagram (1 Of 3)
G05828141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

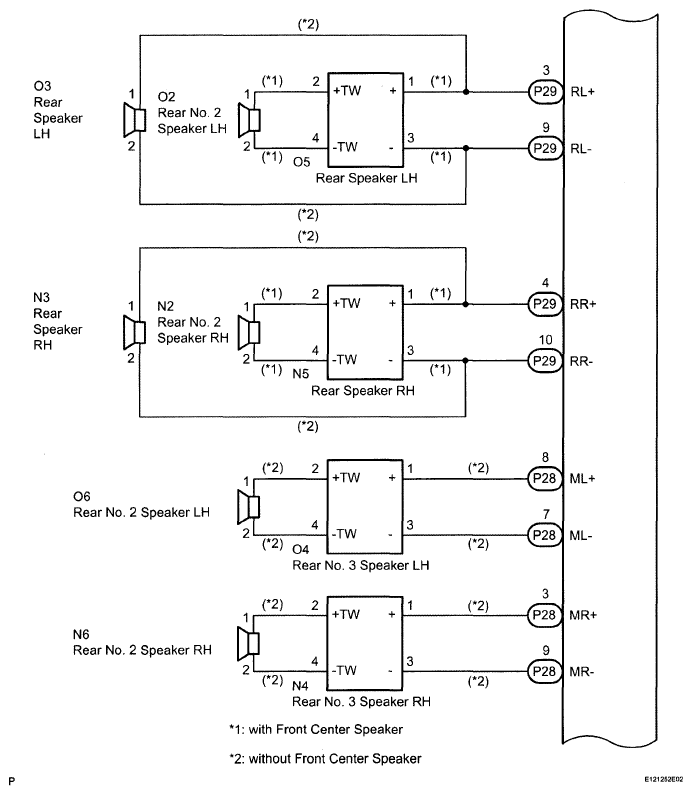

Fig 2: Stereo Component Amplifier - Wiring Diagram (2 Of 3)
G05828142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

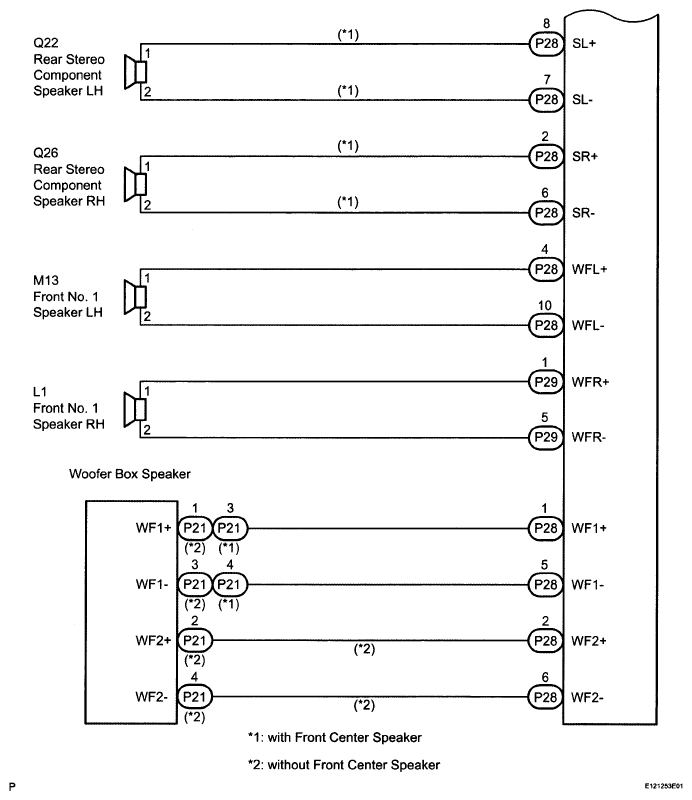

Fig 3: Stereo Component Amplifier - Wiring Diagram (3 Of 3)
G05828143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
