System Diagram

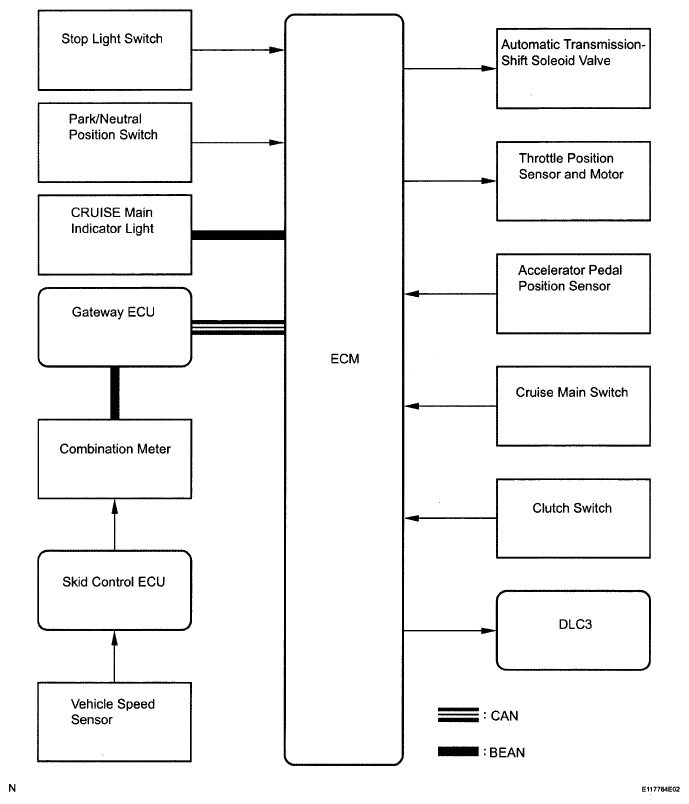

Fig 1: Cruise Control System - System Diagram
G05831898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table:

COMMUNICATION CHART

Sender Receiver Signal Line
ECM Combination Meter ECU CRUISE main indicator operation signal BEAN (Instrument Panel Bus)
