4WD Control ECU Communication Stop Mode: Wiring Diagram

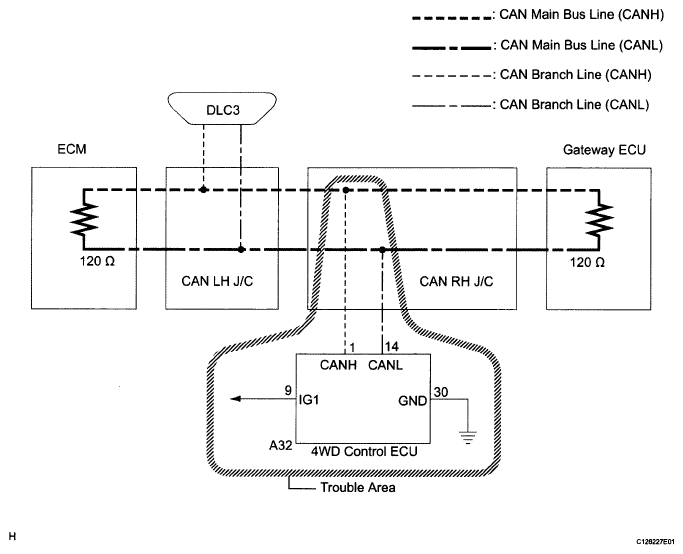

Fig 1: 4WD Control ECU Communication - Wiring Diagram

G05828602

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
