Transfer Case Oil Seal: Components

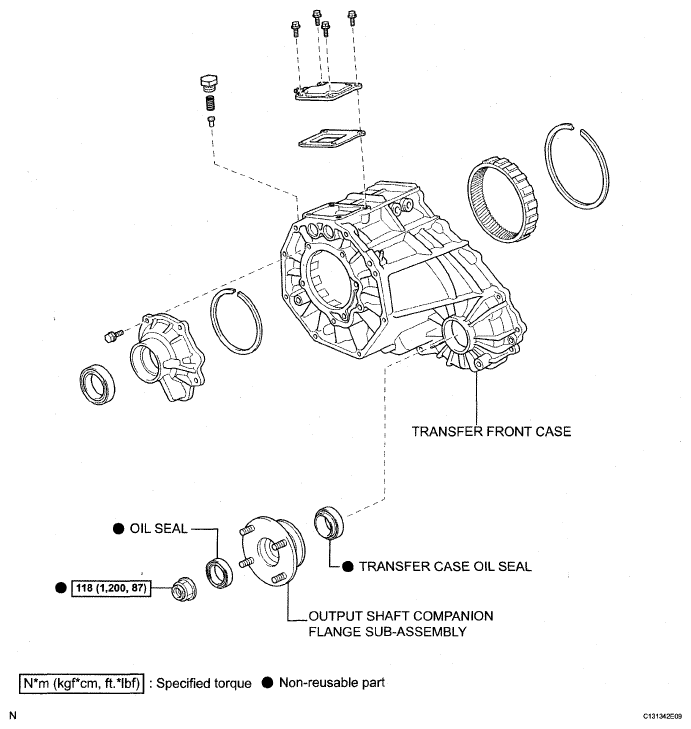

Fig 1: Transfer Case Oil Seal Replacement Components With Torque Specifications

G05261721

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
