Center Differential Lock System
>>
Parts Location
Parts Location

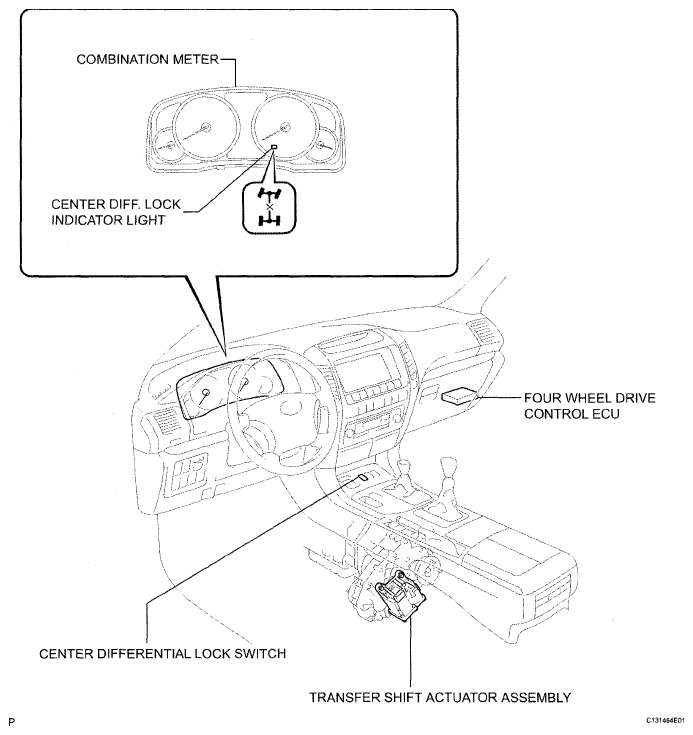

Fig 1: Identifying Center Differential Lock System Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
