Conditioning For Sensor Testing

HINT:

Perform the operation with the engine speeds and time durations described below prior to checking the waveforms of the A/F and HO2 sensors. This is in order to activate the sensors sufficiently to obtain the appropriate inspection results.

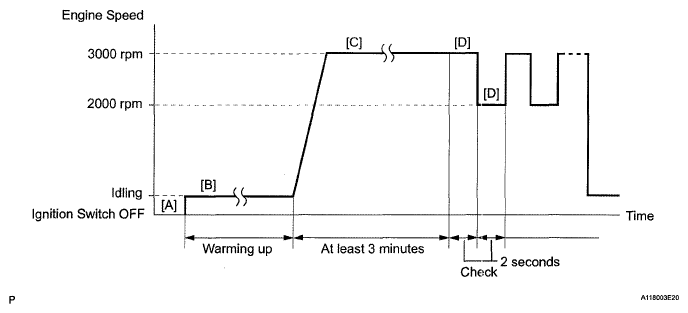

Fig 1: A/F And HO2 Sensors Waveforms Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the Techstream to the DLC3 [A].
Start the engine and warm it up with all the accessories switched OFF, until the engine coolant temperature stabilizes [B].
Run the engine at an engine speed of between 2500 rpm and 3000 rpm for at least 3 minutes [C].
While running the engine at 3000 rpm for 2 seconds and 2000 rpm for 2 seconds, check the waveforms of the A/F and HO2 sensors using the tester [D].
HINT.
- If either of voltage outputs of the Air Fuel Ratio (A/F) or Heated Oxygen (HO2) sensors does not fluctuate, or either of the sensors makes a noise, the sensor may be malfunctioning.
- If the voltage outputs of both the sensors remain lean or rich, the air fuel ratio may be extremely lean or rich. In such cases, perform the following Control the Injection Volume for A/F Sensor using the Techstream.
- If the Three-Way Catalytic Converter (TWC) has deteriorated, the HO2 sensor (located behind the TWC) voltage output fluctuates up and down frequently, even under normal driving conditions (active air fuel ratio control is not performed).

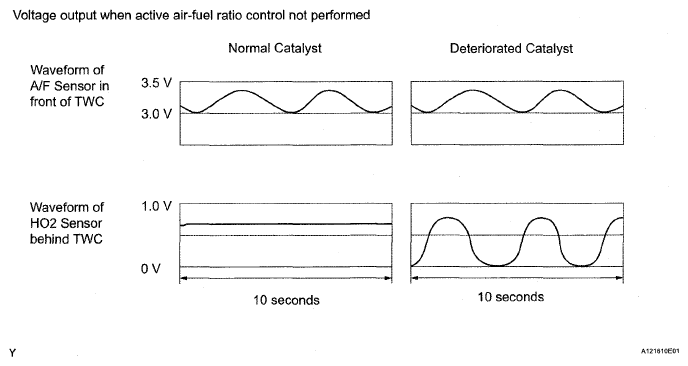

Fig 2: HO2 Sensor Voltage Output Chart (Active Air Fuel Ratio Control Is Not Performed)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

A/F CONTROL

HINT:

Techstream only:

Malfunctioning areas can be identified by performing the Control the Injection Volume for A/F Sensor function provided in the Active Test. The Control the Injection Volume for A/F Sensor function can help to determine whether the Air Fuel Ratio (A/F) sensor, Heated Oxygen (HO2) sensor and other potential trouble areas are malfunctioning

The following instructions describe how to conduct the Control the Injection Volume for A/F Sensor operation using the Techstream.

Connect the Techstream to the DLC3.
Start the engine and turn the tester ON.
Warm up the engine at an engine speed of 2500 rpm for approximately 90 seconds.
On the tester, enter the following menus: Powertrain/Engine and ECT/Active Test/Control the Injection Volume for A/F Sensor.
Perform the Control the Injection Volume for A/F Sensor operation with the engine in an idling condition (press the RIGHT or LEFT button to change the fuel injection volume).
Monitor the voltage outputs of the A/F and HO2 sensors (AFS B1S1 and O2S B1S2 or AFS B2S1 and O2S B2S2) displayed on the tester.

HINT:

The Control the Injection Volume for A/F Sensor operation lowers the fuel injection volume by 12.5% or increases the injection volume by 25%.
Each sensor reacts in accordance with increases in the fuel injection volume.

Standard voltage:

STANDARD VOLTAGE

Tester Display (Sensor)	Injection Volume	Status	Voltage
AFS B1S1 or AFS B2S1 (A/F)	+25 %	Rich	Less than 3 0
AFS B1S1 or AFS B2S1 (A/F)	-12 5 %	Lean	More than 3 35
O2S B1S2 or O2S B2S2 (HO2)	+25 %	Rich	More than 0 55
O2S B1S2 or O2S B2S2 (HO2)	-12 5%	Lean	Less than 0 4

NOTE: The Air Fuel Ratio (A/F) sensor has an output delay of a few seconds and the Heated Oxygen (HO2) sensor has a maximum output delay of approximately 20 seconds.

A/F SENSOR AND HO2 SENSOR OUTPUT DELAY CHART

Case	A/F Sensor (Sensor 1) Output Voltage	HO2 Sensor (Sensor 2) Output Voltage	Main Suspected Trouble Area
1	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	-
2	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	A/F sensor A/F sensor heater A/F sensor circuit
3	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	HO2 sensor HO2 sensor heater HO2 sensor circuit
4	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Injector Fuel pressure Gas leakage from exhaust system (Air-fuel ratio extremely rich or lean)

Following the Control the Injection Volume for A/F Sensor procedure enables technicians to check and graph the output voltages of both the A/F and HO2 sensors.
To display the graph, enter the following menus on the tester: Powertrain/Engine and ECT/Active Test/Control the Injection Volume for A/F Sensor/A/F Control System/AFS B1 S1 and O2S B1 S2 or AFS B2 S1 and O2S B2 S2.
