Home >> Lexus >> 2008 >> GX 470 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Seat Heater >> Notes

Seat Heater: Notes

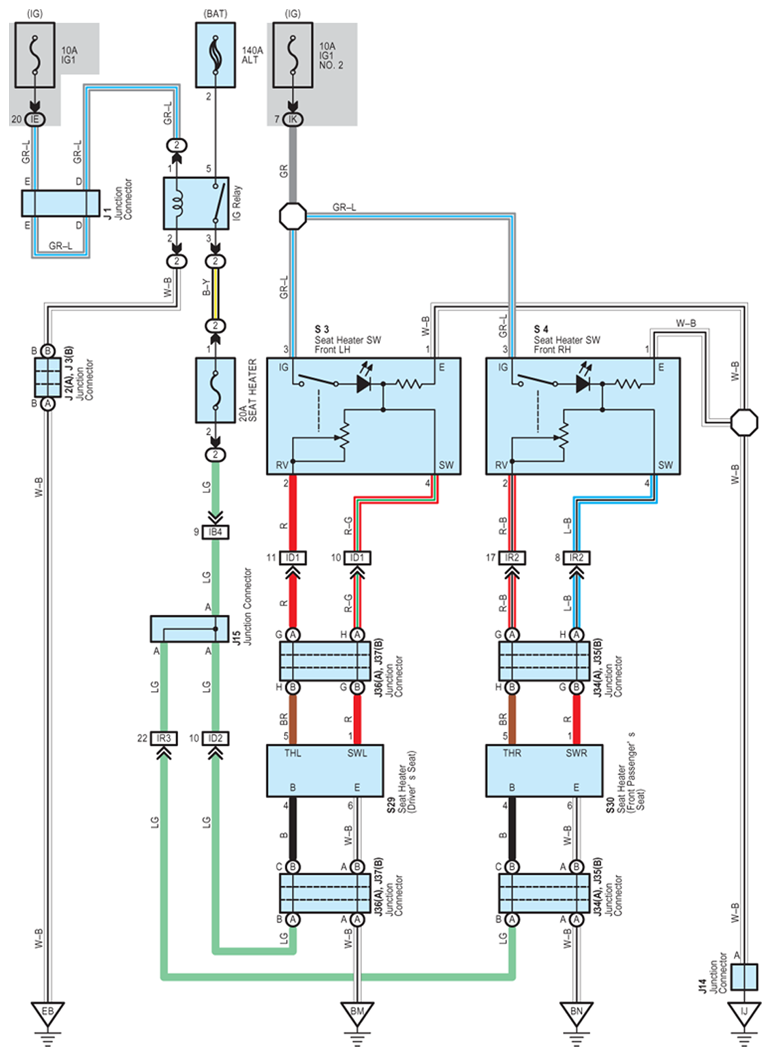

Fig 1: Seat Heater - Circuit Diagram

G07613474

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
