DTC C1380/64 Stop Light Control Relay Malfunction: Wiring Diagram

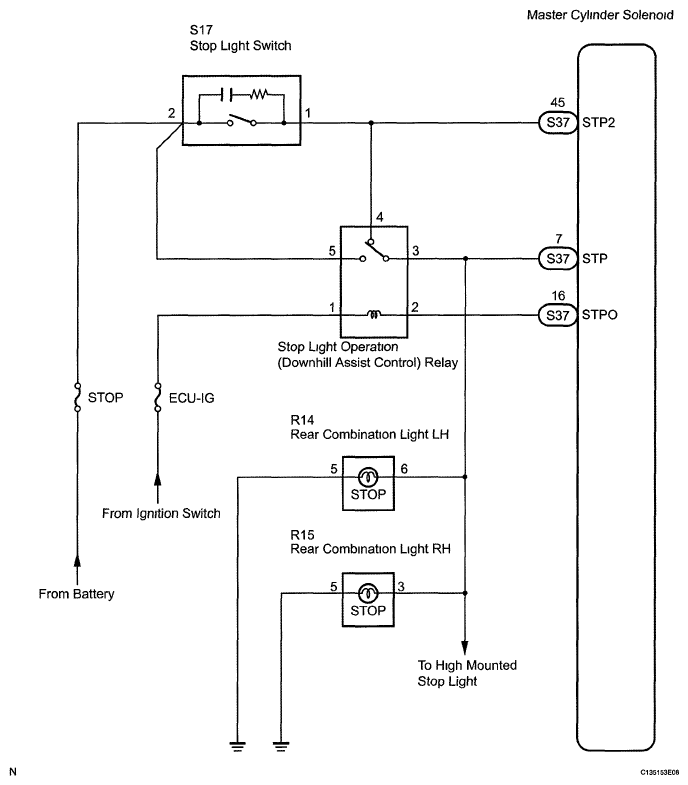

Fig 1: Stop Light Control Relay Malfunction - Wiring Diagram

G05845000

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
