Manual Up/Down Function does not Operate on Rear LH Only: Wiring Diagram

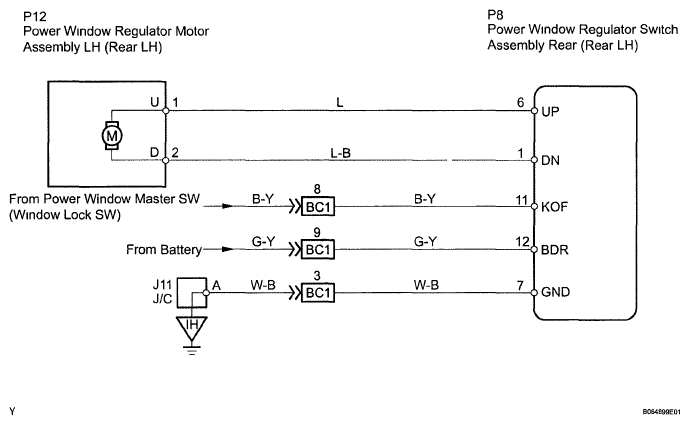

Fig 1: Power Window - Wiring Diagram

G05846617

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
