Parts Location

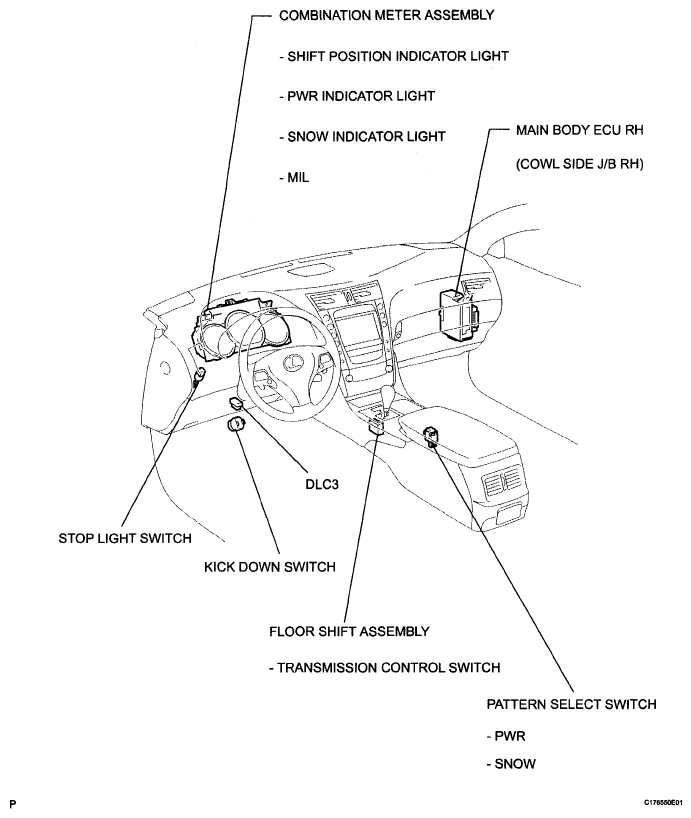

Fig 1: Identifying Automatic Transmission System Components Location (1 Of 2)
G05806190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

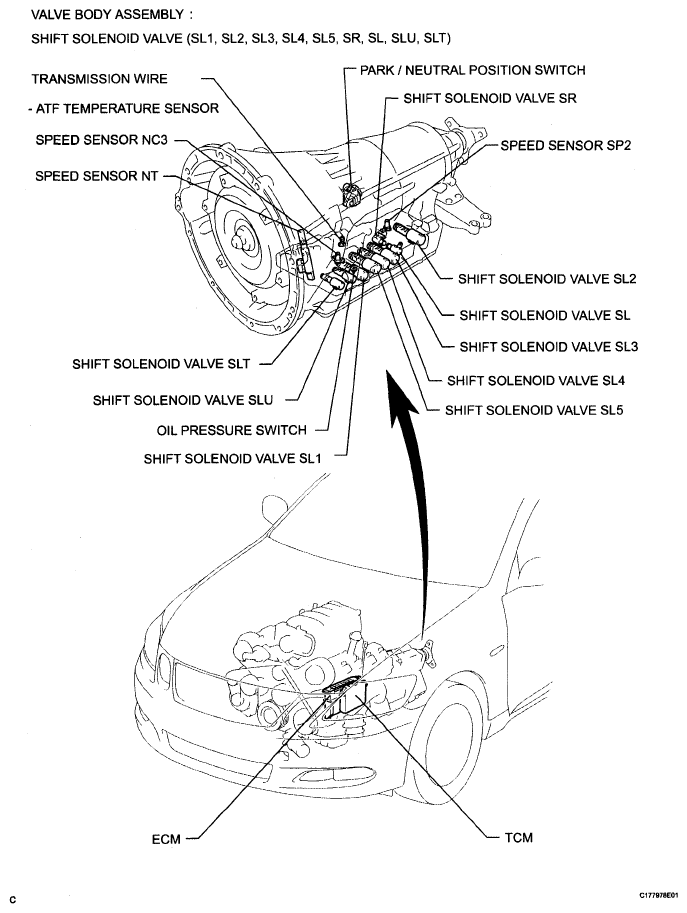

Fig 2: Identifying Automatic Transmission System Components Location (2 Of 2)
G05806191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
