Steering Knuckle: Components

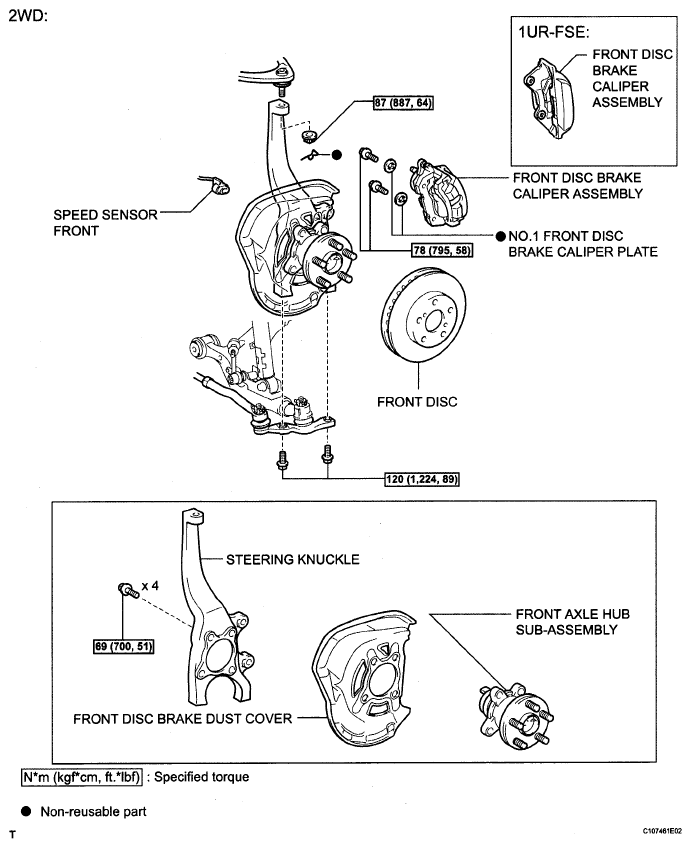

Fig 1: Steering Knuckle Replacement Components With Torque Specifications (1 Of 2)
G05809142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Steering Knuckle Replacement Components With Torque Specifications (2 Of 2)
G05809143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
