Knock Sensor: Components

Fig 1: Lnock Sensor Replacement Components With Torque Specifications (1 Of 2)
G05804110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

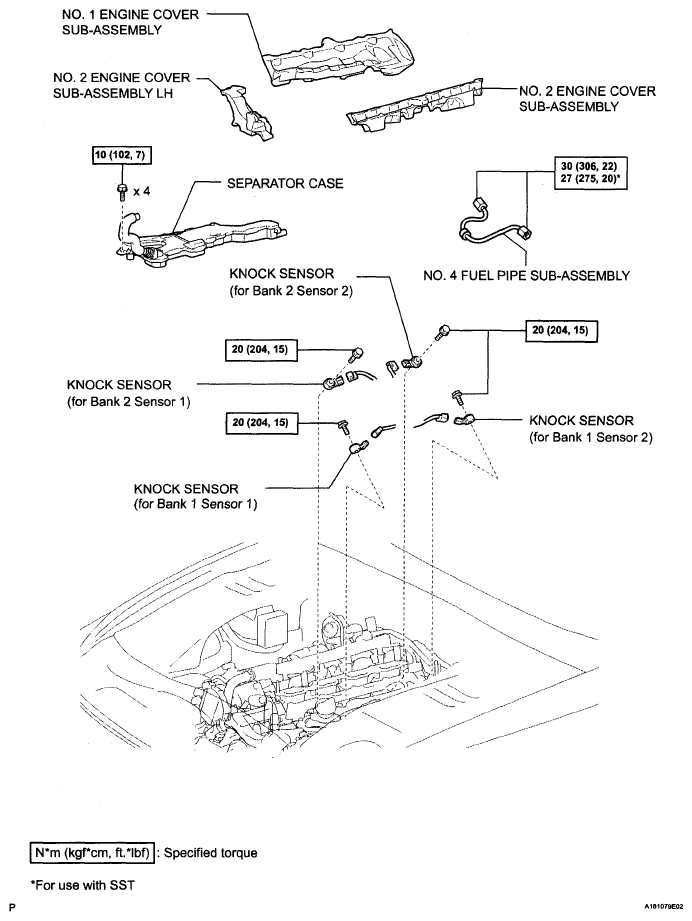

Fig 2: Lnock Sensor Replacement Components With Torque Specifications (2 Of 2)
G05804111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
