Engine Coolant Temperature Sensor: Components

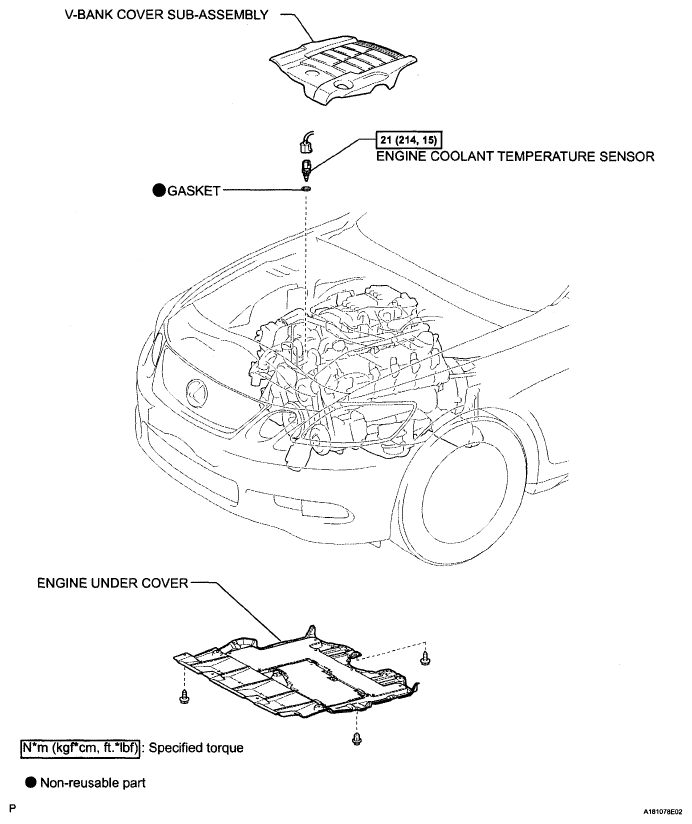

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications

G05804106

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
