System Diagram

FUEL FLOW DIAGRAM

Fig 1: Fuel Flow Diagram (For Direct Injection Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

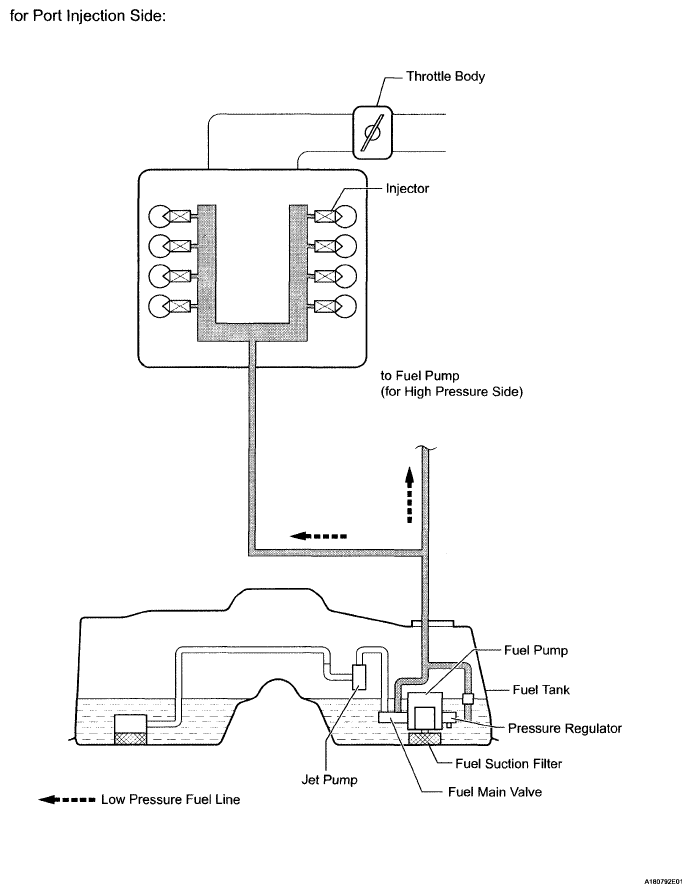

Fig 2: Fuel Flow Diagram (For Port Injection Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ELECTRICAL CONTROL DIAGRAM

Fig 3: Electrical Control Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HIGH PRESSURE SIDE (DIRECT INJECTION SIDE) FUEL SYSTEM WIRING DIAGRAM

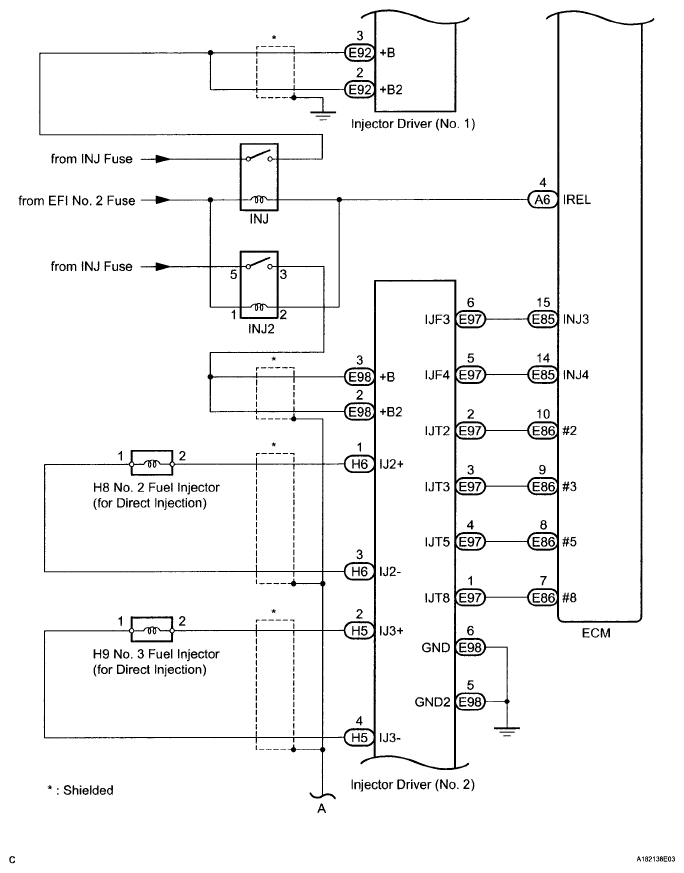

Fig 4: High Pressure Side (Direct Injection Side) Fuel System - Wiring Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: High Pressure Side (Direct Injection Side) Fuel System - Wiring Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

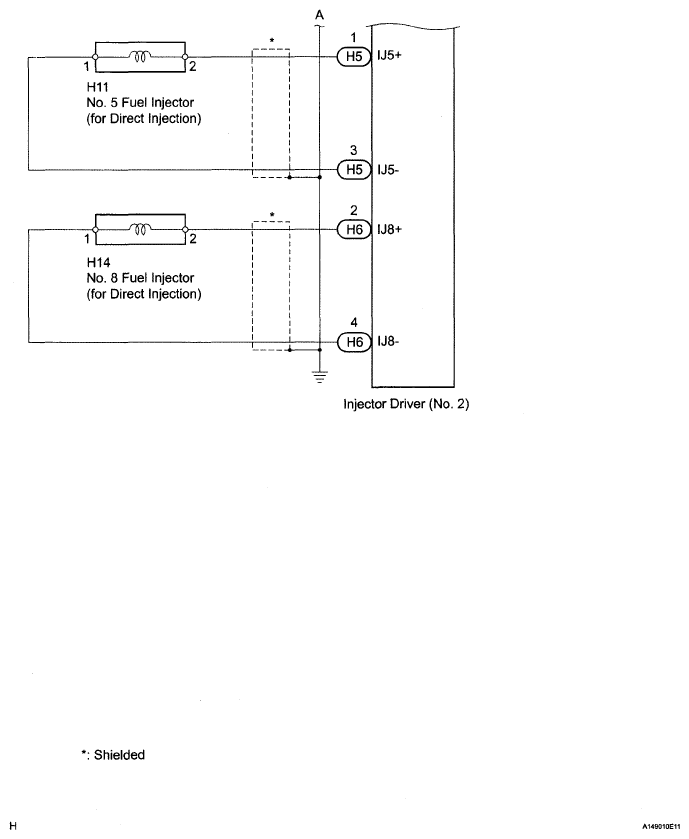

Fig 6: High Pressure Side (Direct Injection Side) Fuel System - Wiring Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FUEL PRESSURE SENSOR AND PORT INJECTION SIDE FUEL SYSTEM WIRING DIAGRAM

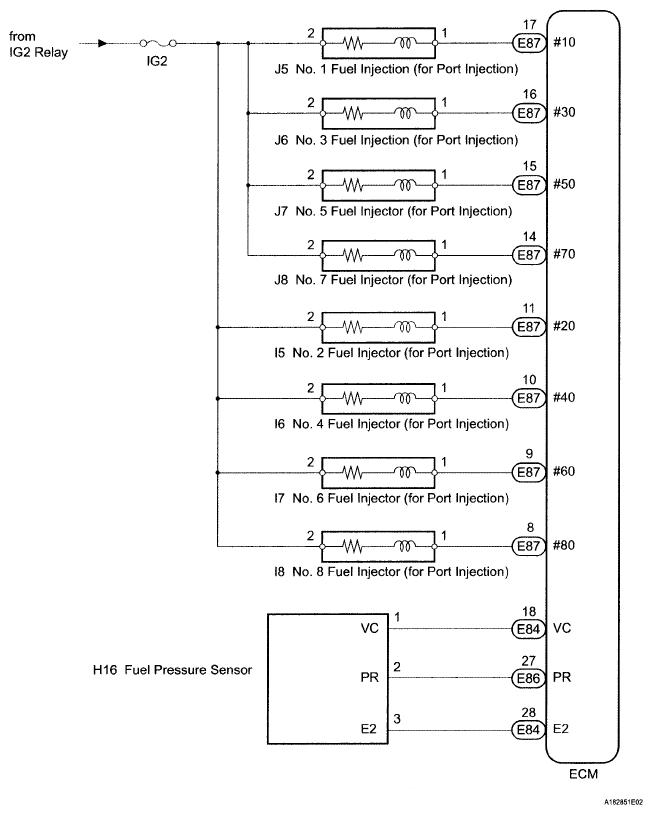

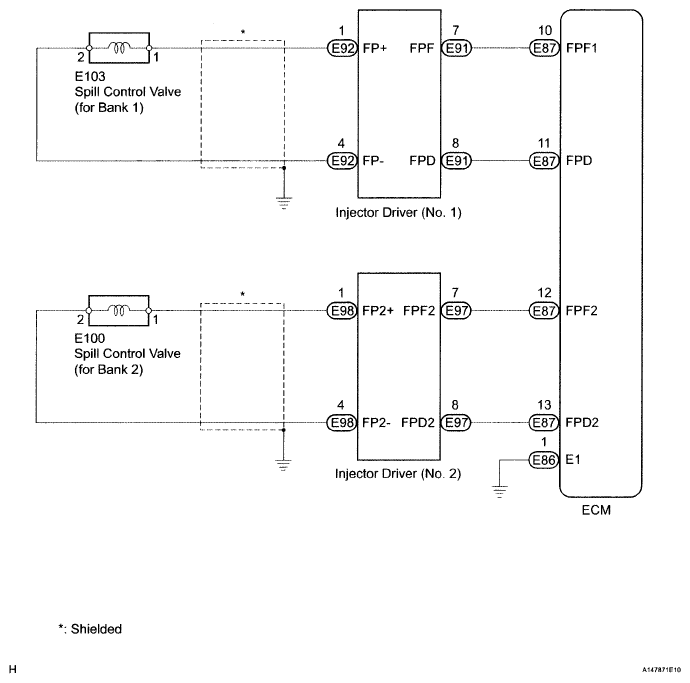

Fig 7: Fuel Pressure Sensor And Port Injection Side Fuel System - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
LOW PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

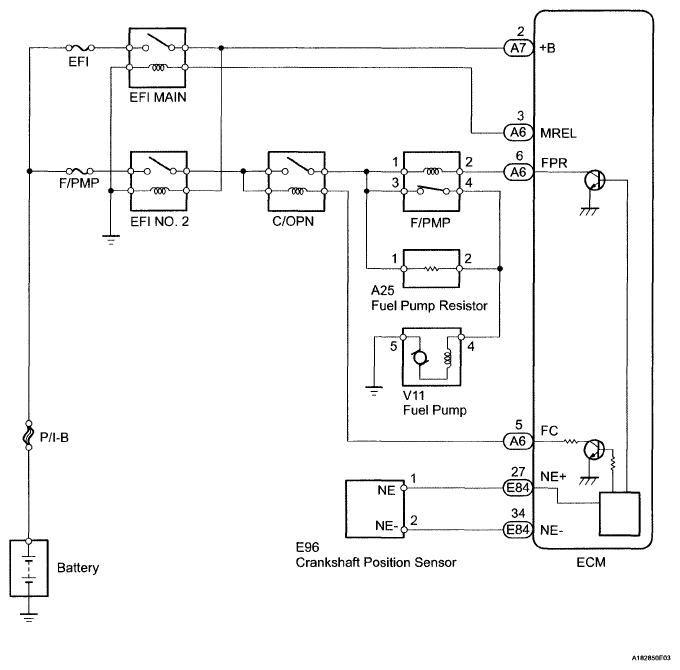

Fig 8: Low Pressure Side Fuel System - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INJECTOR DRIVER WIRING DIAGRAM

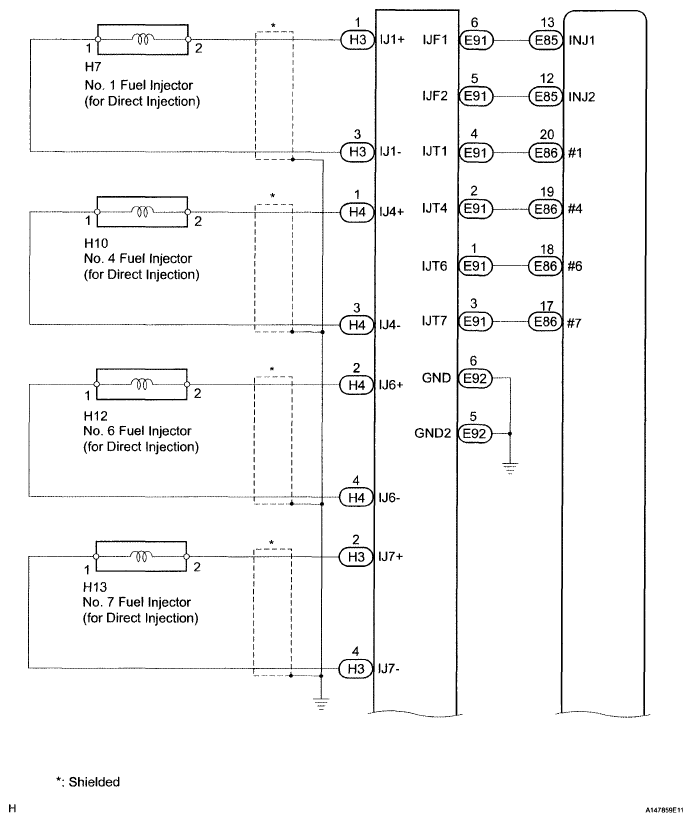

Fig 9: Injector Driver - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
