Fuel Pump: Components

Fig 1: Fuel Pressure Regulator Replacement Components With Torque Specifications (1 Of 2)
G05805565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

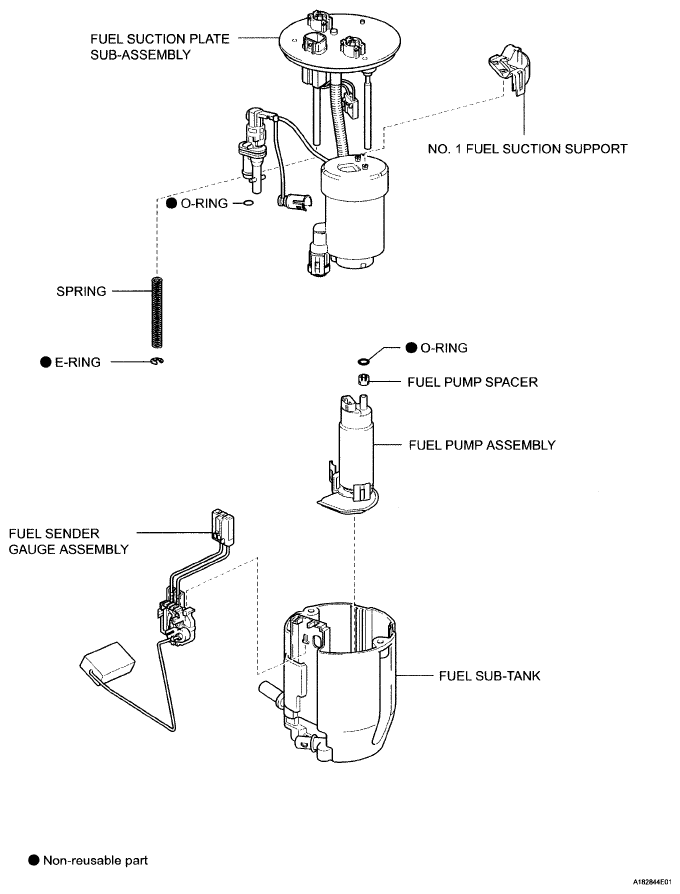

Fig 2: Fuel Pump Replacement Components With Torque Specifications (2 Of 3)
G05805611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
