FUEL INJECTOR (for Direct Injection): Components

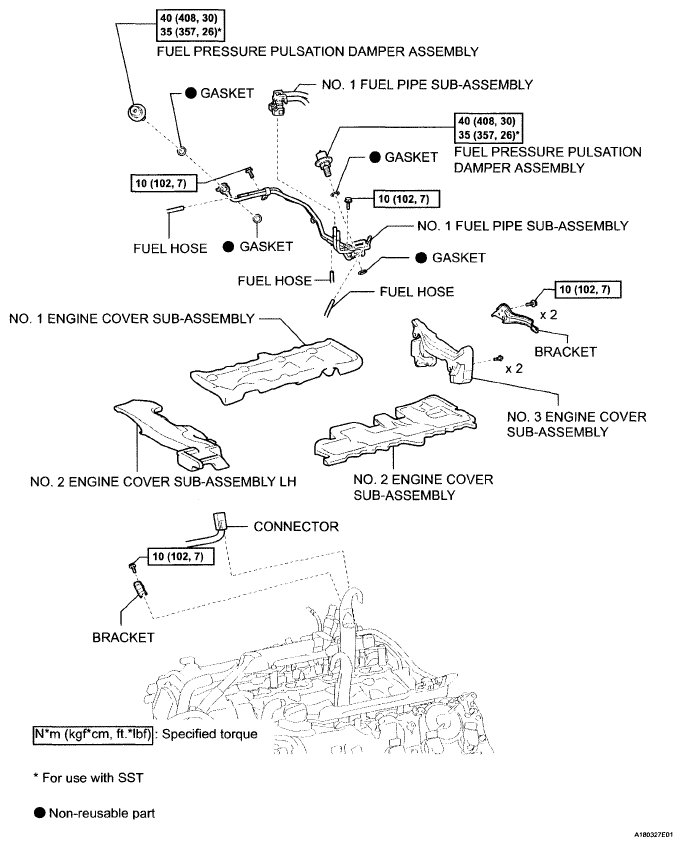

Fig 1: Fuel Injector Replacement Components With Torque Specifications For Direct Injection (1 Of 2)
G05805525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

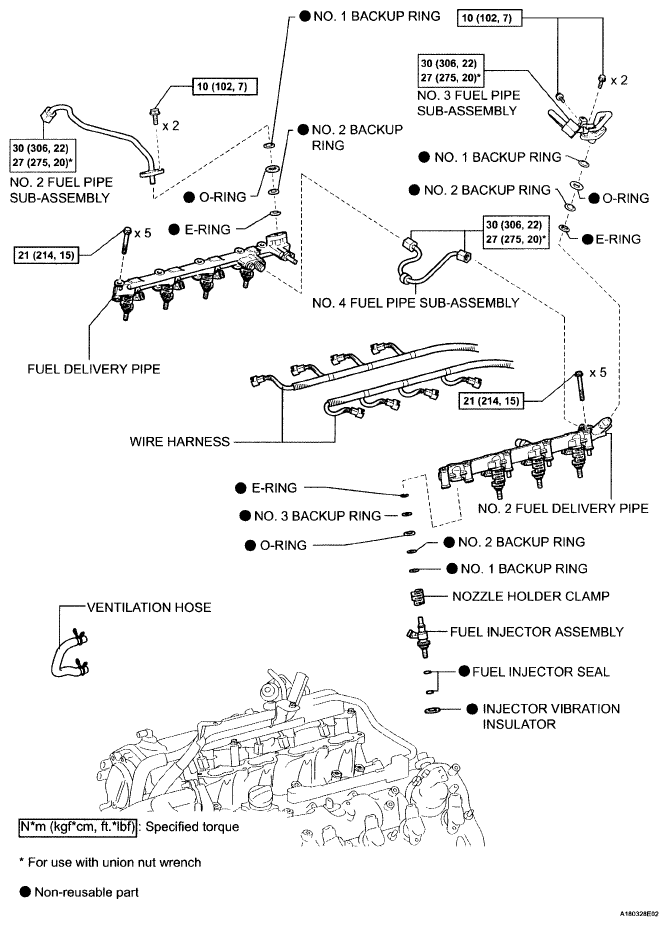

Fig 2: Fuel Injector Replacement Components With Torque Specifications For Direct Injection (2 Of 2)
G05805526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
