Instrument Panel Safety Pad: Components

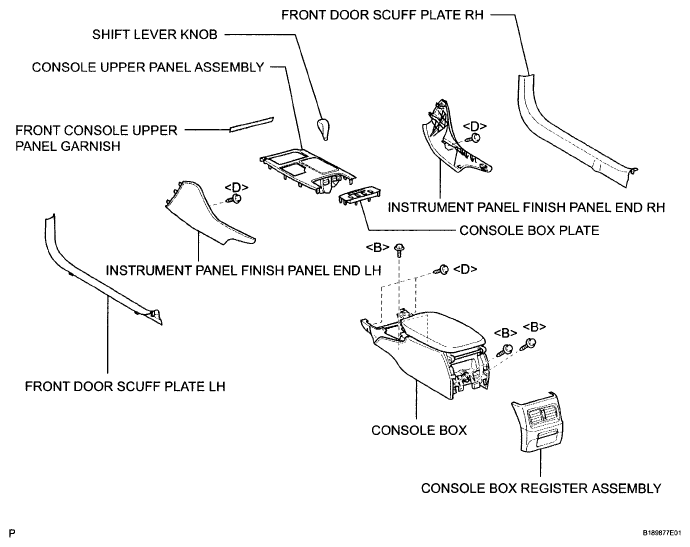

Fig 1: Instrument Panel Safety Pad Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

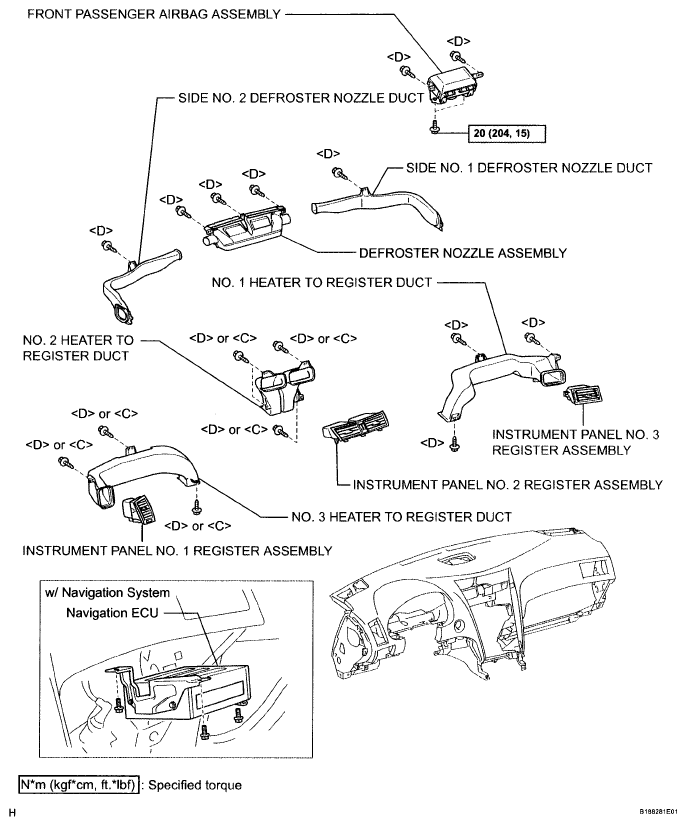

Fig 2: Instrument Panel Safety Pad Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

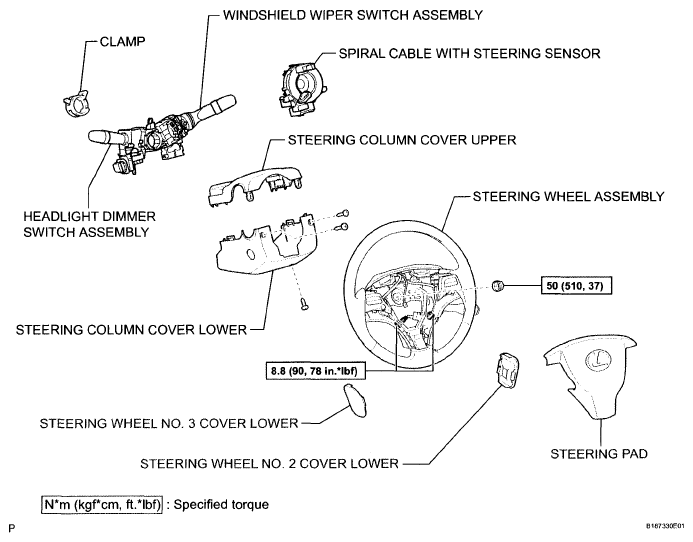

Fig 3: Instrument Panel Safety Pad Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

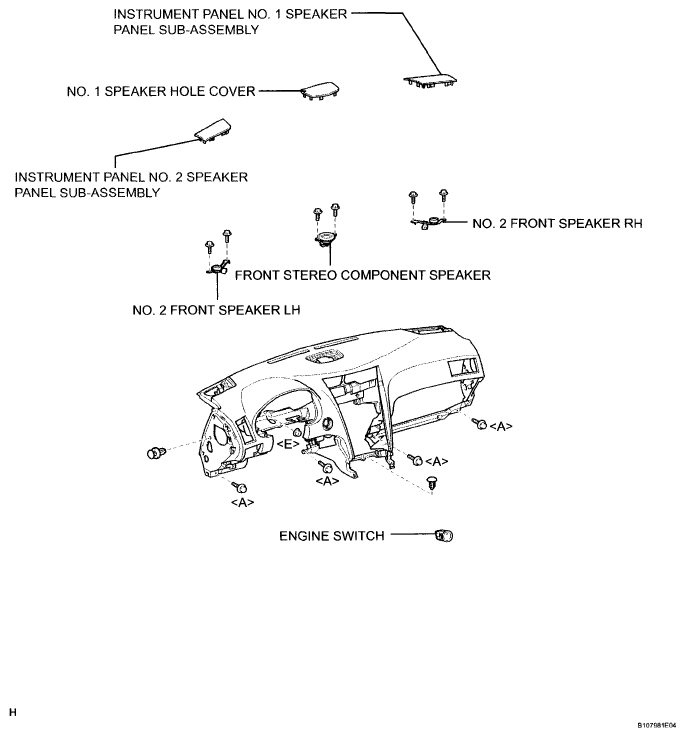

Fig 4: Instrument Panel Safety Pad Replacement Components With Torque Specifications (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

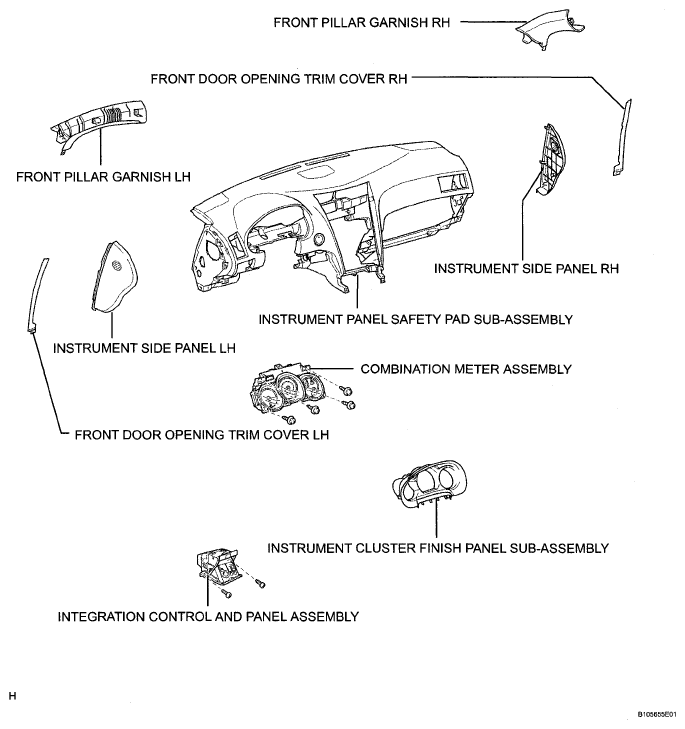

Fig 5: Instrument Panel Safety Pad Replacement Components With Torque Specifications (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

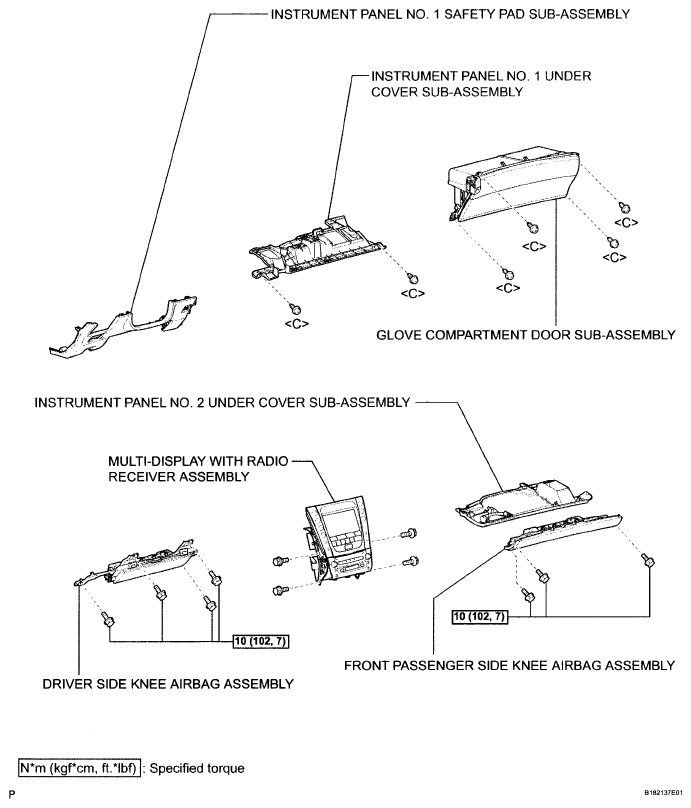

Fig 6: Instrument Panel Safety Pad Replacement Components With Torque Specifications (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
