VSC OFF Indicator Light Remains ON: Wiring Diagram

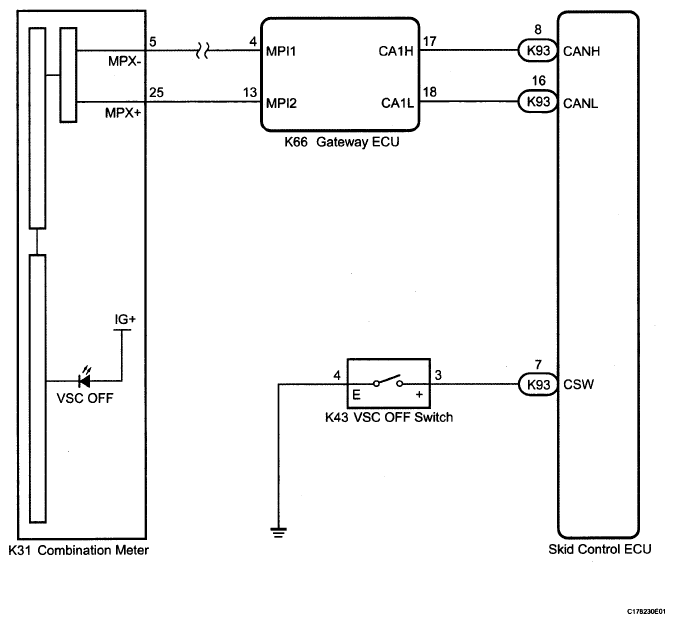

Fig 1: VSC OFF Indicator Light Wiring Diagram

G05807075

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
