FRONT SPEED SENSOR (for 2WD): Components

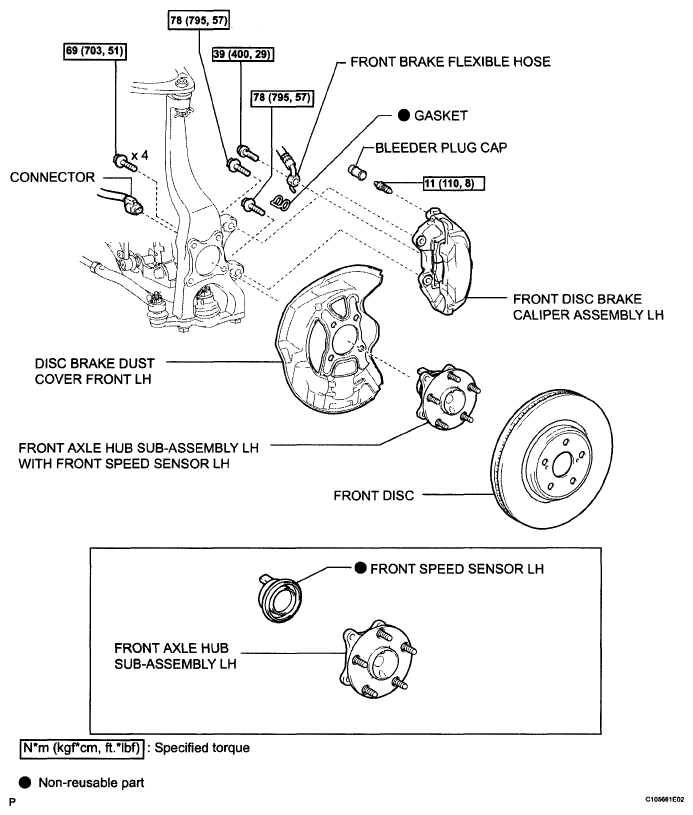

Fig 1: Front Speed Sensor Replacement Components - 2WD With Torque Specifications

G05807260

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
