Brakes
>>
Traction Control
>>
Brake Control
>>
Electronically Controlled Brake System
>>
Brake Control Warning Light Remains ON
>>
Wiring Diagram
Brake Control Warning Light Remains ON: Wiring Diagram

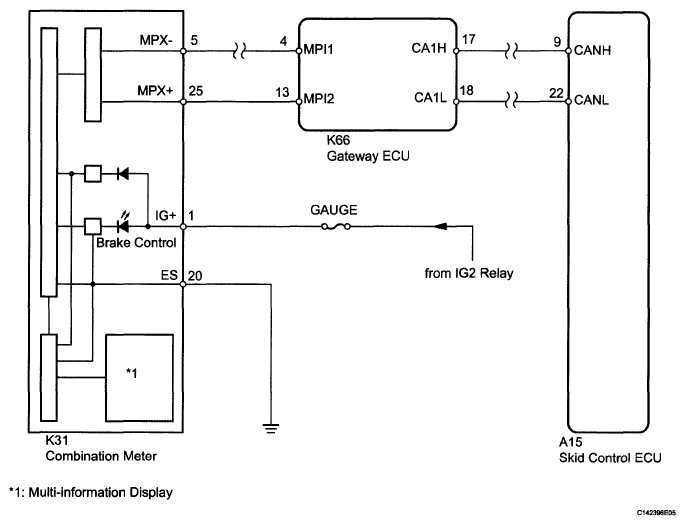

Fig 1: Brake Control Warning Light Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
