ID Code Box Power Source Circuit: Wiring Diagram

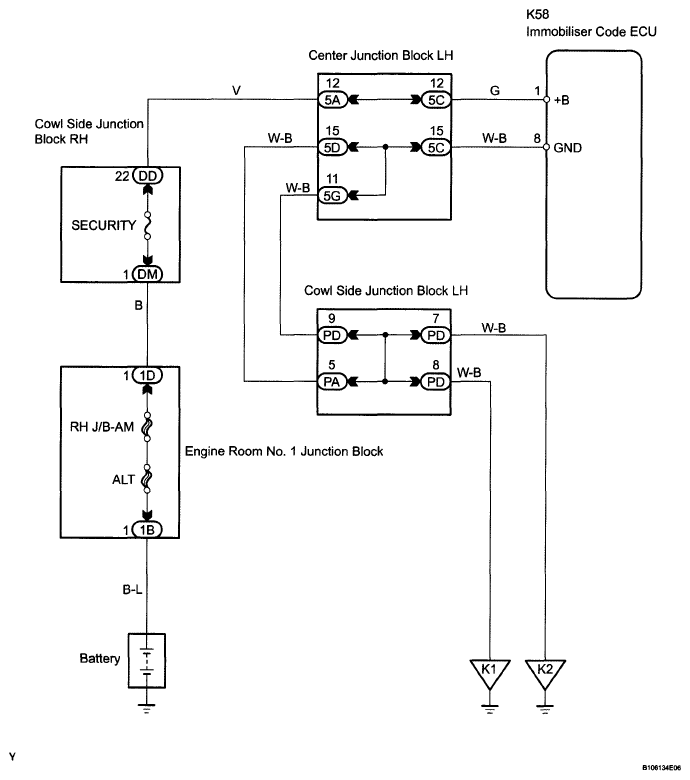

Fig 1: ID Code Box Power Source Circuit - Wiring Diagram

G05810900

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
