Automatic Light Control: Notes

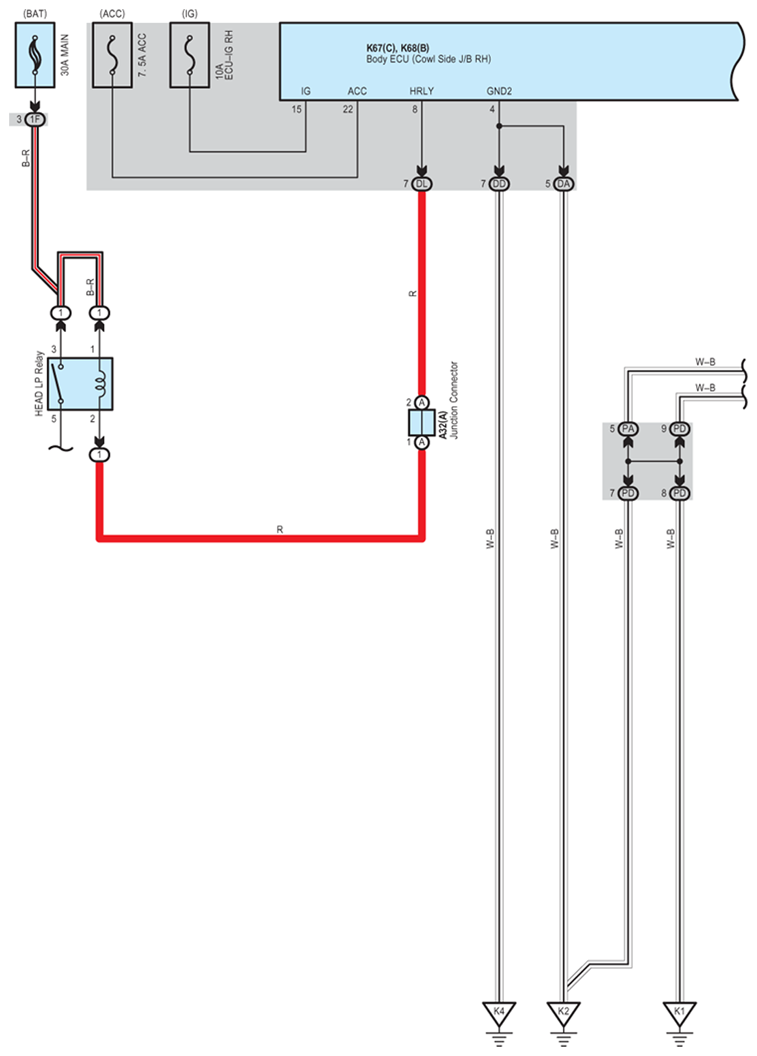

Fig 1: Automatic Light Control - Circuit Diagram (1 Of 3)
G07613075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

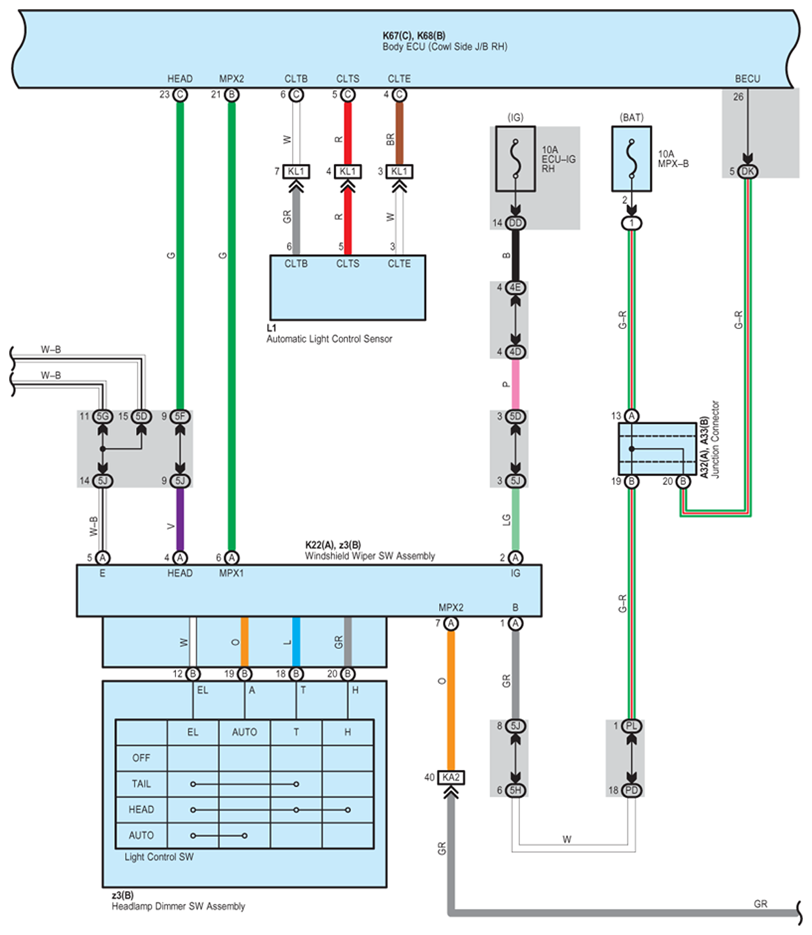

Fig 2: Automatic Light Control - Circuit Diagram (2 Of 3)
G07613076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

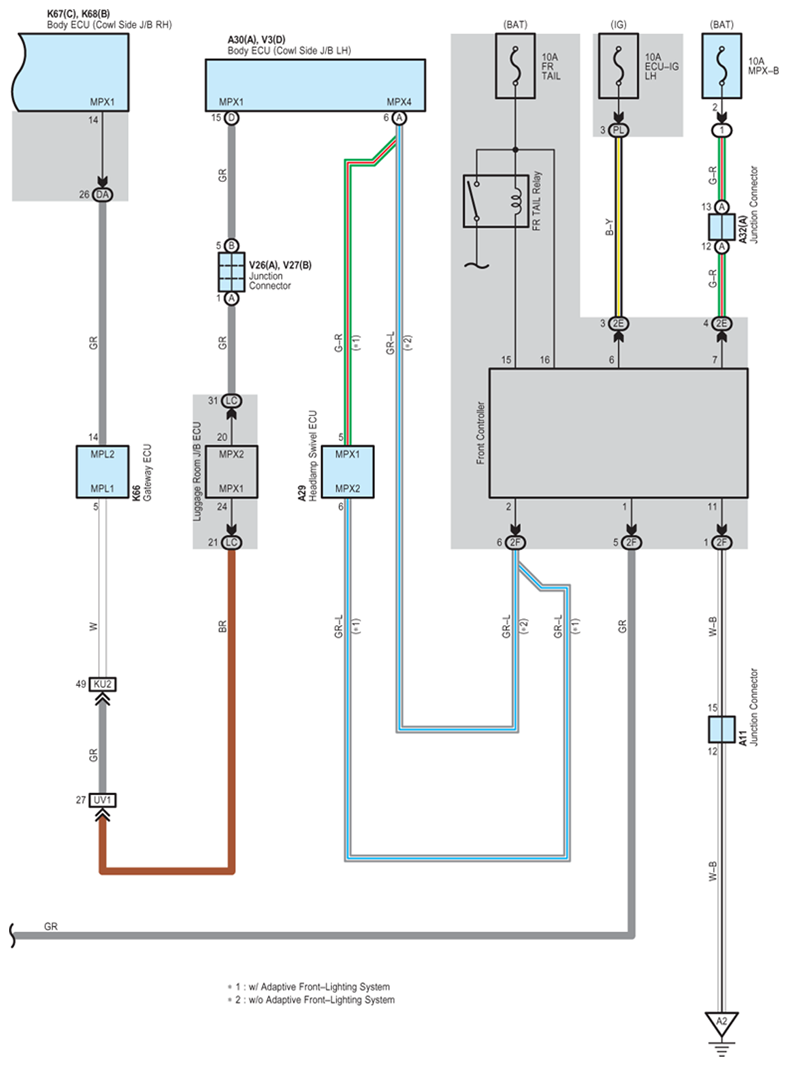

Fig 3: Automatic Light Control - Circuit Diagram (3 Of 3)
G07613077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
