Transmission Wire: Components

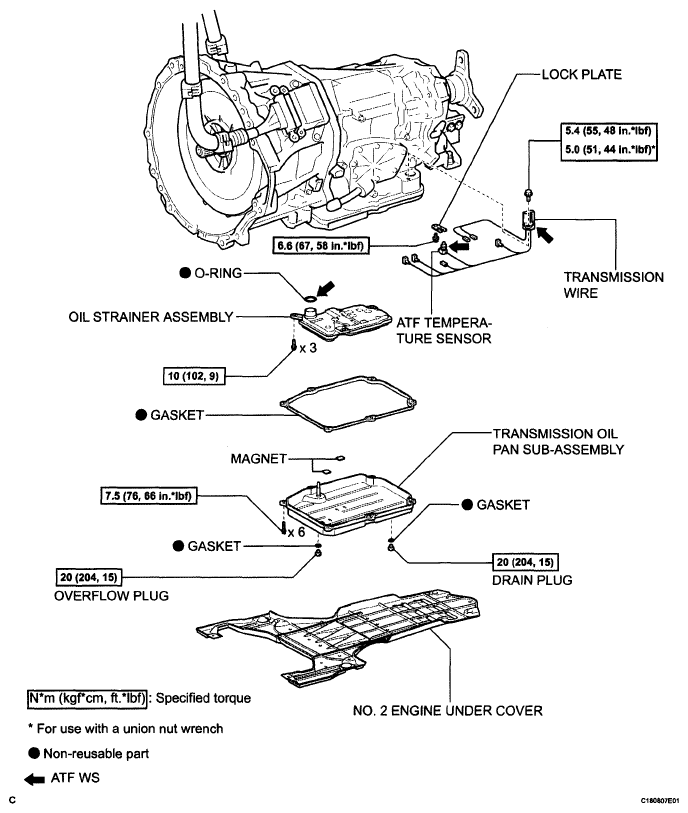

Fig 1: Transmission Wire Replacement Components With Torque Specifications

G05818817

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
