Shift Lever Position Sensor: Components

Fig 1: Identifying Shift Lever Position Sensor Replacement Components With Torque Specification (1 Of 2)
G05818651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

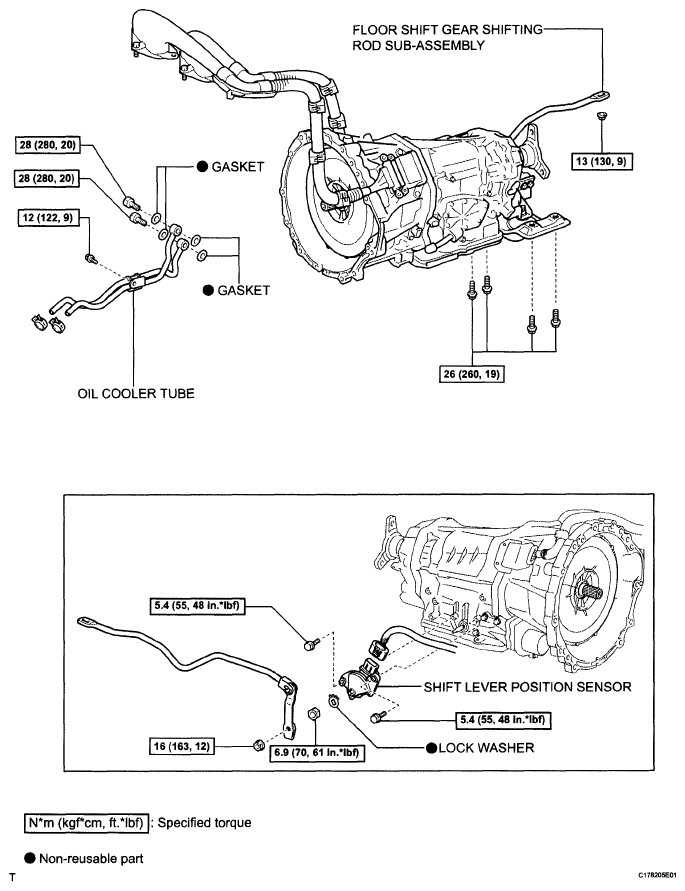

Fig 2: Shift Lever Position Sensor Replacement Components With Torque Specifications (2 Of 2)
G05818652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
