Rear Axle Hub: Components

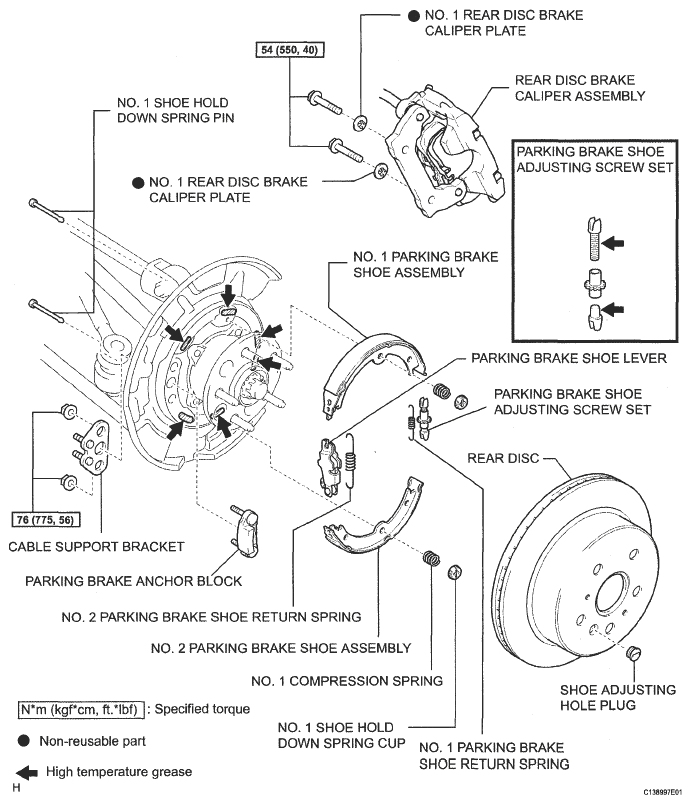

Fig 1: Identifying Rear Axle Hub Replacement Components With Torque Specification (1 Of 2)
G05305411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

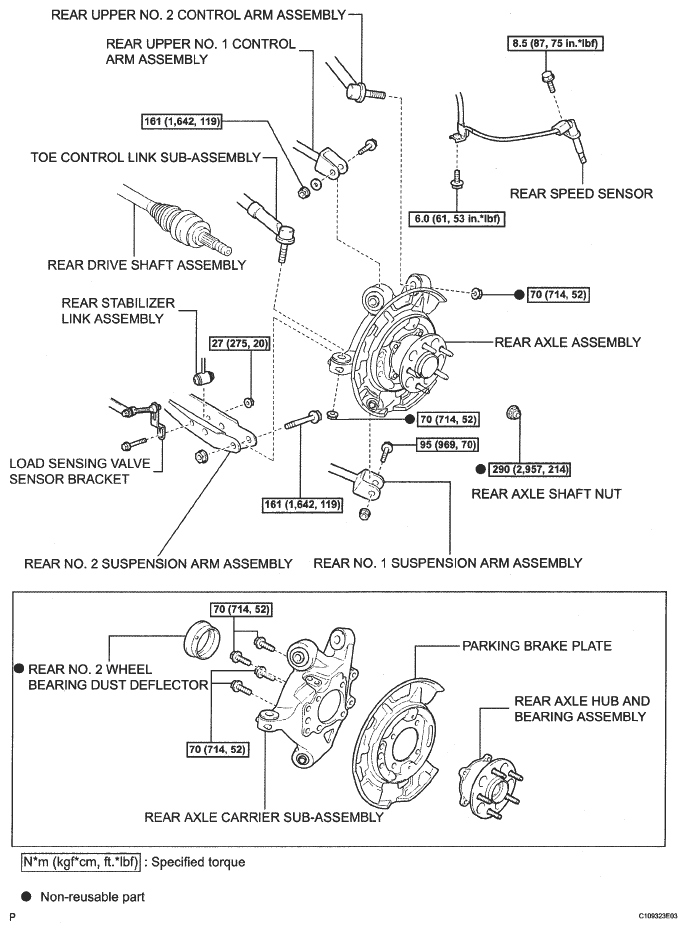

Fig 2: Rear Axle Hub Replacement Components With Torque Specifications (2 Of 2)
G05305412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
