Home >> Lexus >> 2008 >> GS 450h >> Repair and Diagnosis >> Steering >> Manual Steering >> Power Steering >> Steering Gear >> Components

Steering Gear: Components

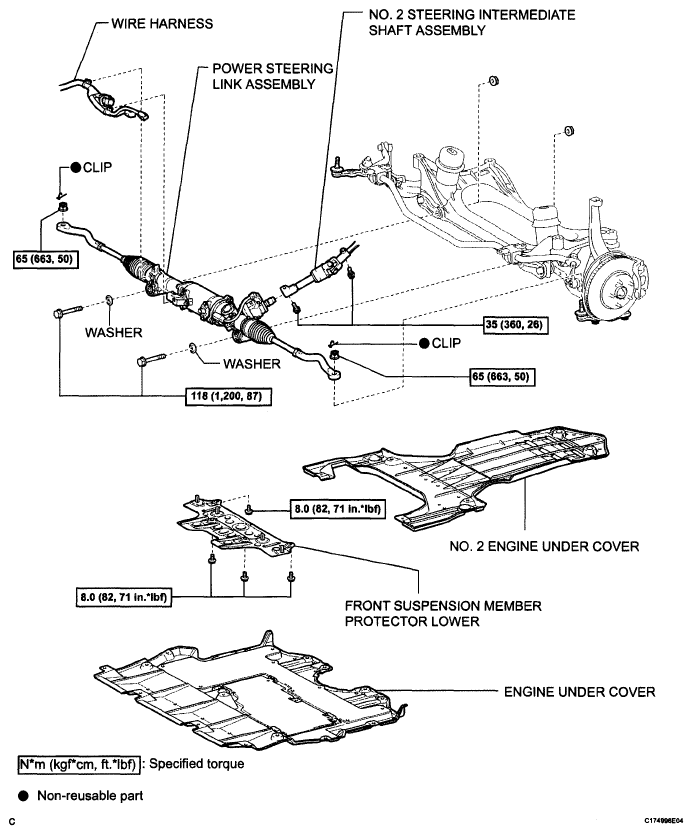

Fig 1: Steering Gear Replacement Components With Torque Specifications (1 Of 2)
G05819175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

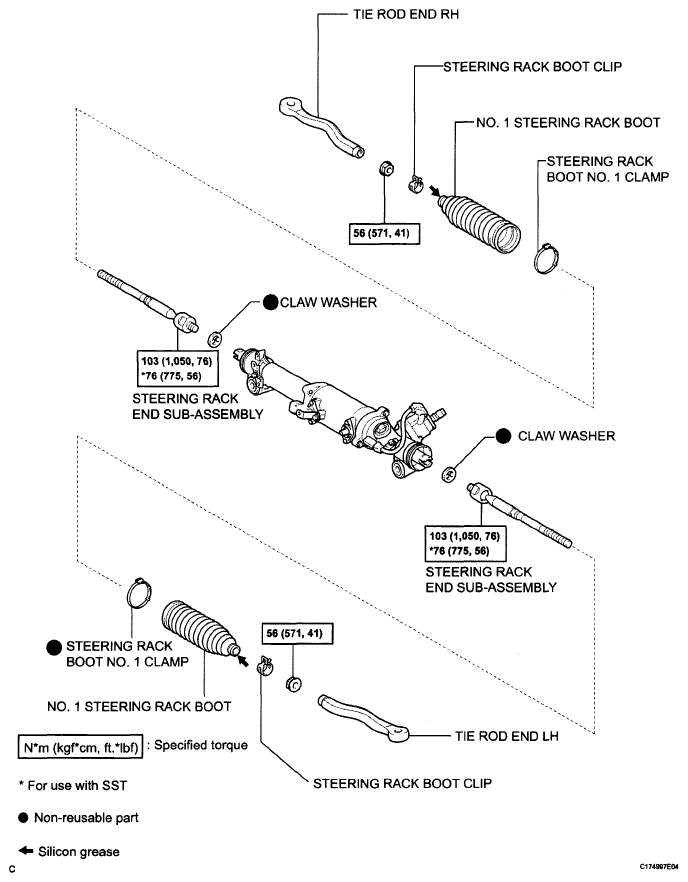

Fig 2: Steering Gear Replacement Components With Torque Specifications (2 Of 2)
G05819176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
