HV Relay Assembly: Components

Fig 1: Identifying HV Relay Assembly Components (1 Of 2)
G05304955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

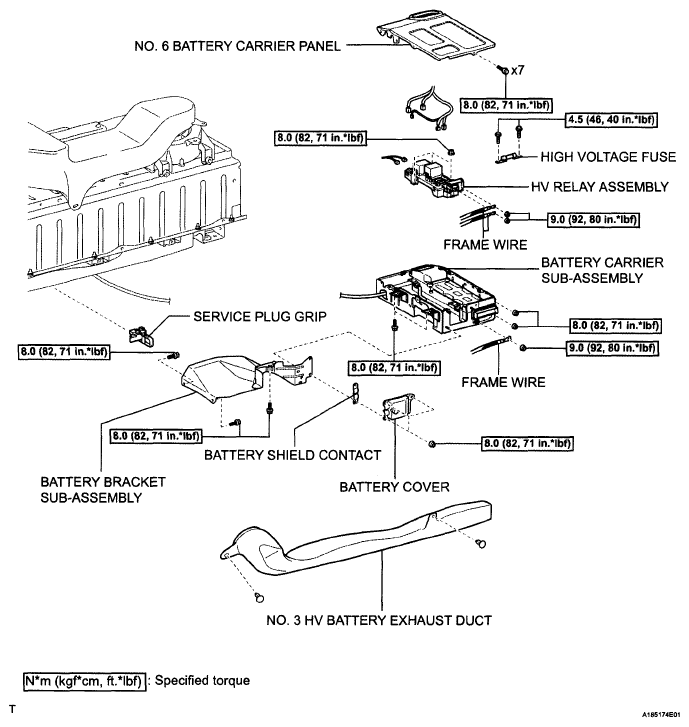

Fig 2: HV Relay Assembly Replacement Components With Torque Specifications (2 Of 2)
G05818592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
