HV Battery: Components

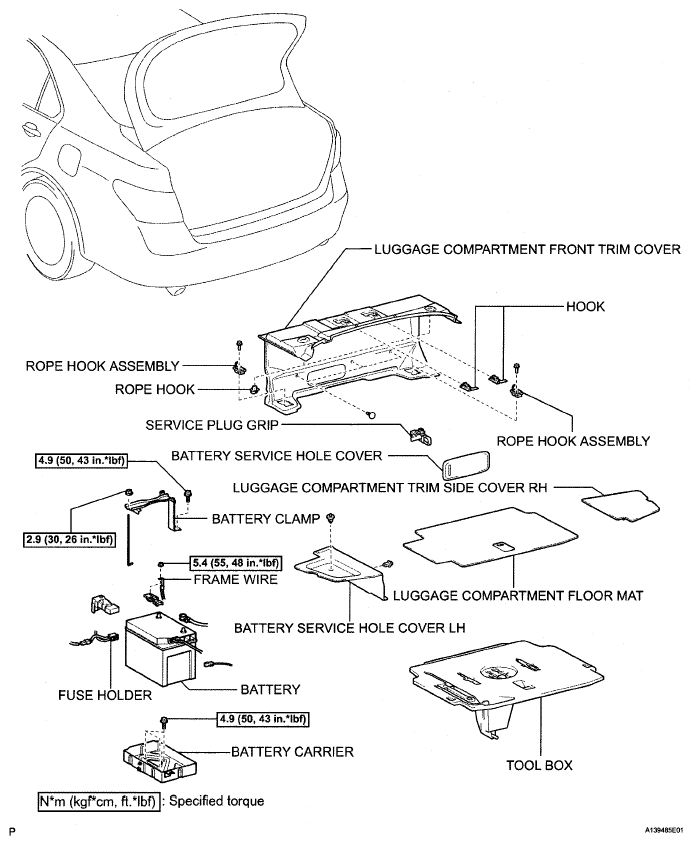

Fig 1: HV Battery Replacement Components With Torque Specifications (1 Of 3)
G05304888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying HV Battery Replacement Components With Torque Specification (2 Of 3)
G05304889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

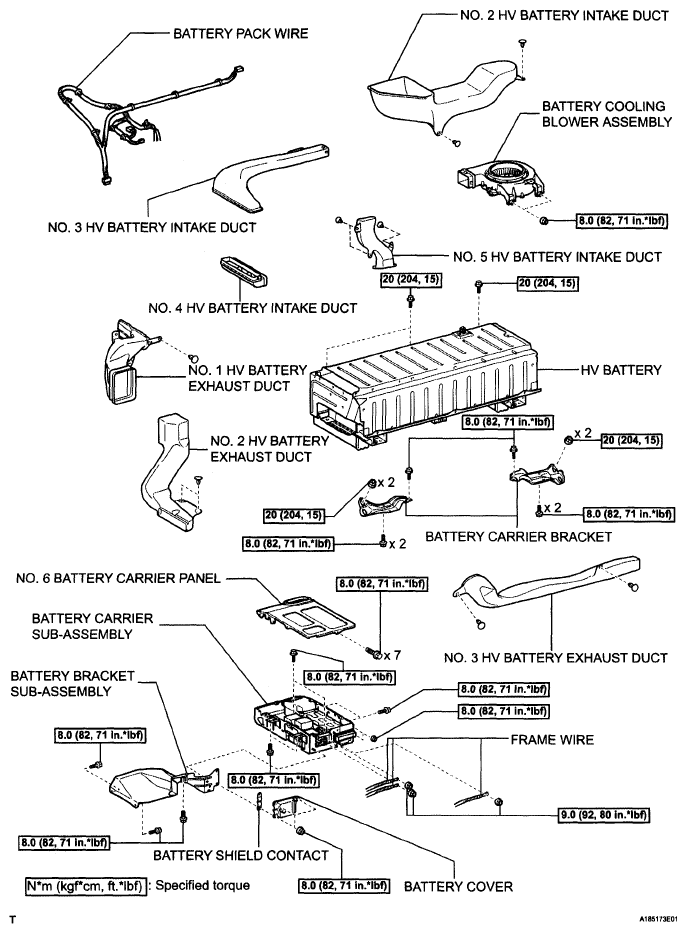

Fig 3: HV Battery Replacement Components With Torque Specifications (3 Of 3)
G05818522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
