Battery Blower: Components

Fig 1: Identifying Battery Blower Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

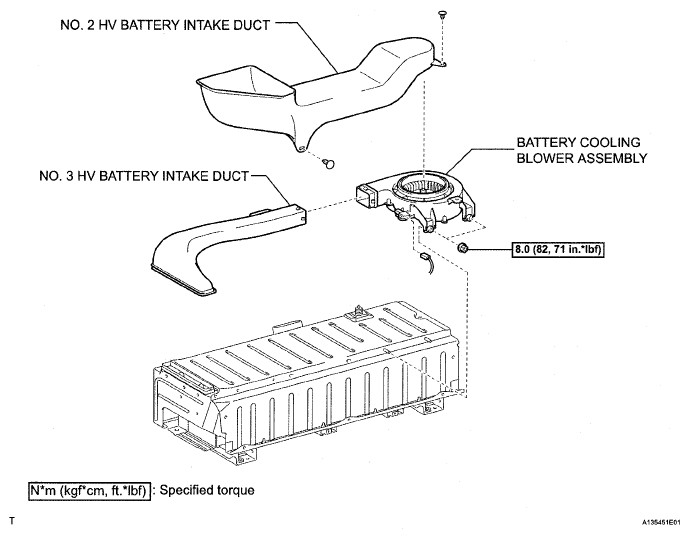

Fig 2: Battery Blower Replacement Components (2 Of 2) With Torque Specifications
