Exhaust Pipe: Components

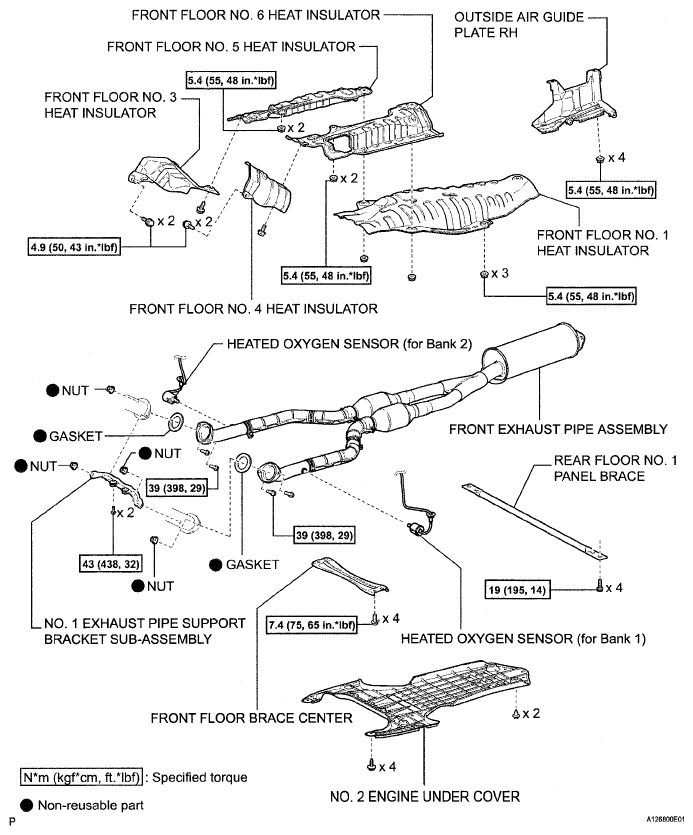

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications (1 Of 2)
G05303430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

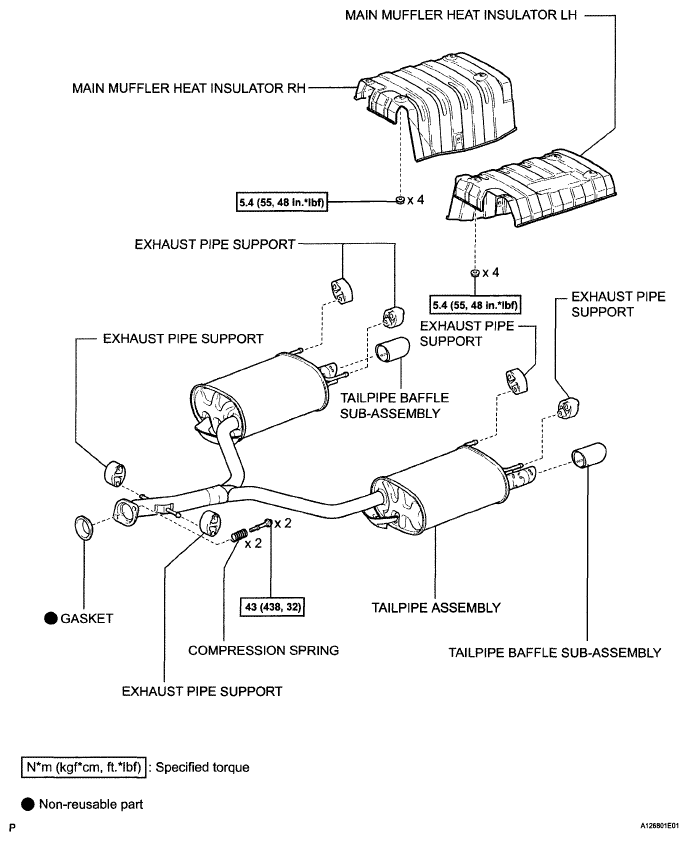

Fig 2: Exhaust Pipe Replacement Components With Torque Specifications (2 Of 2)
G05303431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
