Heated Oxygen Sensor: Components

Fig 1: Identifying Heated Oxygen Sensor Components (1 Of 2)
G05303407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

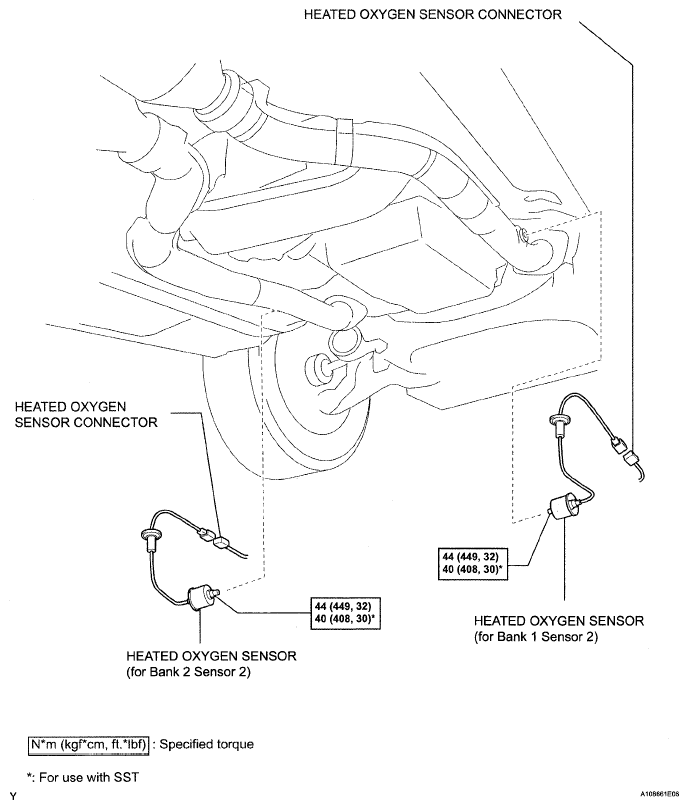

Fig 2: Heated Oxygen Sensor Replacement Components (2 Of 2) With Torque Specifications
G05303408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
