Air Fuel Ratio Sensor: Components

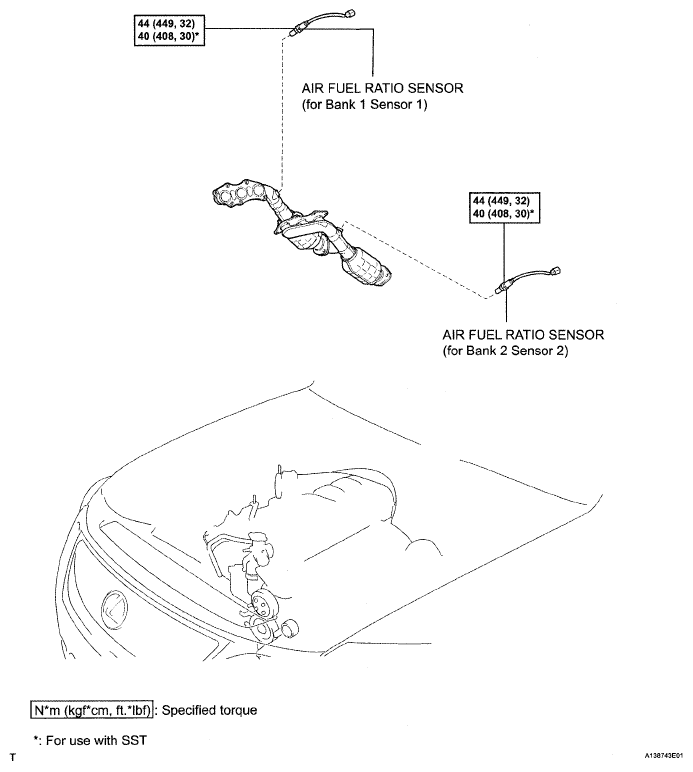

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications

G05303399

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
