Rear Sunshade Assembly: Components

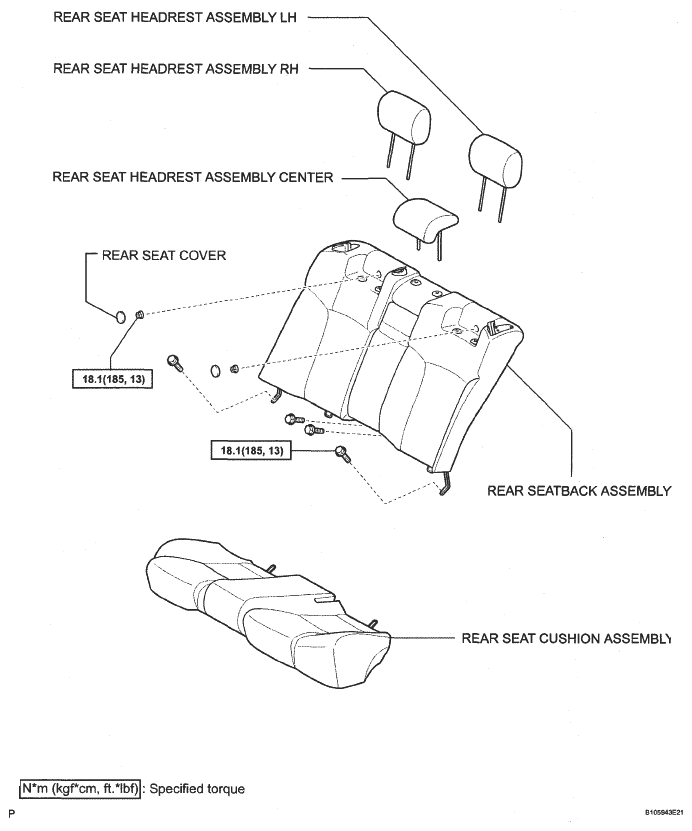

Fig 1: Rear Seat Headrest Replacement Components With Torque Specifications (1 Of 2)
G05311995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Rear Seat Headrest Replacement Components With Torque Specifications (2 Of 2)
G05311996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
