System Diagram

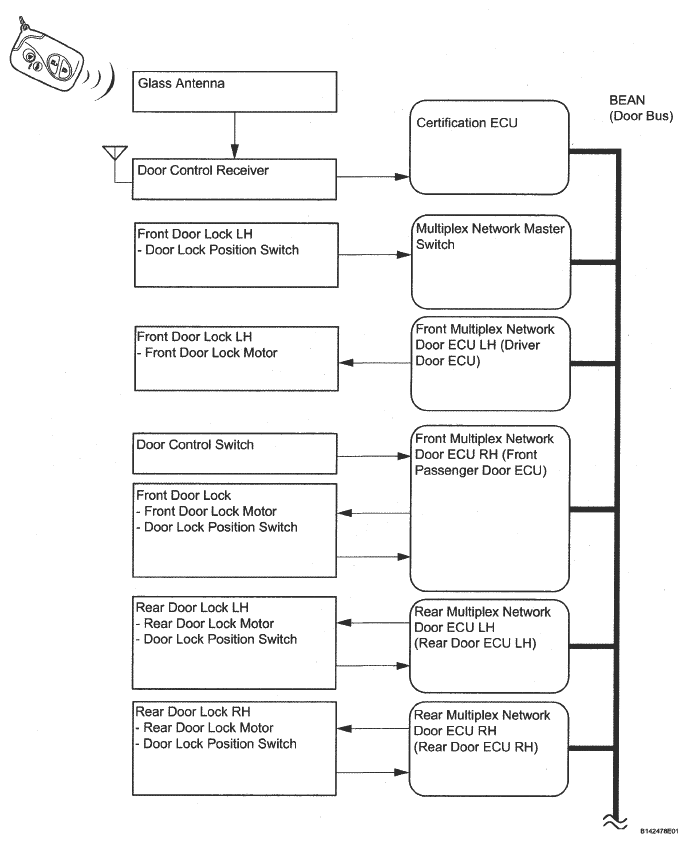

Fig 1: Wireless Door Lock Control System Diagram (1 Of 2)

G05310965

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

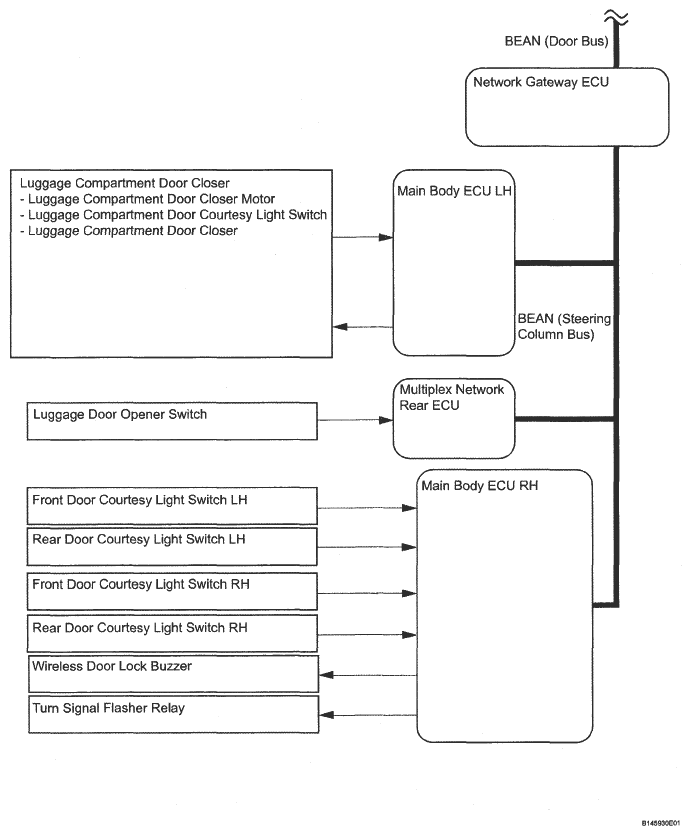

Fig 2: Wireless Door Lock Control System Diagram (2 Of 2)

G05310966

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table:

COMMUNICATION CHART

Sender	Receiver	Signal	Line
Main body ECU RH	Front multiplex network door ECU LH	Wireless door lock control signal Driver side door courtesy light switch signal Driver side door lock control signal	BEAN
	Front multiplex network door ECU RH	Wireless door lock control signal Front passenger side door courtesy light switch signal Front passenger side door lock control signal
	Rear multiplex network door ECU LH	Wireless door lock control signal Rear LH door side courtesy light switch signal Rear LH door lock control signal
	Rear multiplex network door ECU RH	Wireless door lock control signal Rear RH door side courtesy light switch signal Rear RH door lock control signal
Multiplex network rear ECU	Main body ECU RH	Luggage compartment door courtesy light switch signal
