Transmitter Battery: Components

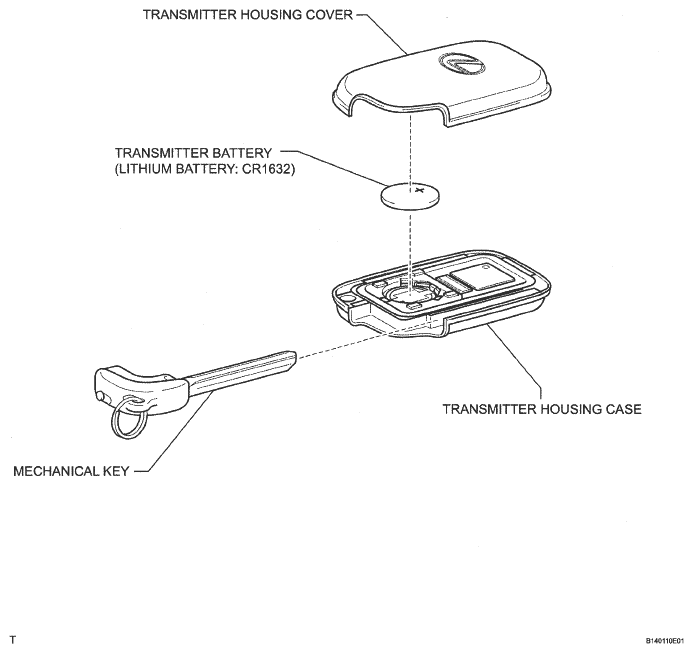

Fig 1: Identifying Transmitter Battery With Associated Components
G05311069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
