Inspection Procedure

1. Check that the manual door unlock function operates normally.

   OK: Manual door unlock function operates normally.

NG:  GO TO POWER DOOR LOCK CONTROL SYSTEM

OK: Go to next step

1. Check the DATA LIST for proper functioning of the rear RH side door courtesy switches.

   Main Body ECU RH:

   MAIN BODY ECU RH DATA LIST



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Rr Door Courtesy SW	Rear door courtesy switch / ON or OFF	ON: Courtesy switch is pushed OFF: Courtesy switch is not pushed	-

   OK: ON (door courtesy switch is pushed) appears on the screen.

NG:  GO TO LIGHTING SYSTEM

OK: Go to next step

1. Check the DATA LIST for proper functioning of the door lock position switch.

   Multiplex Network Door ECU Rear RH:

   MULTIPLEX NETWORK DOOR ECU REAR RH DATA LIST



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Door Unlock Detection Switch	Door unlock detection switch signal/ ON or OFF	ON: Door is unlocked OFF: Door is locked	-

   OK: ON (door is unlocked) appears on the screen.

NG:  GO TO POWER DOOR LOCK CONTROL SYSTEM

OK: Go to next step

1. Select the ACTIVE TEST, use the Techstream to generate a control command, and then check that the oscillator operates.

   Certification ECU:

   CERTIFICATION ECU ACTIVE TEST REFERENCE CHART



   Tester Display	Test Part	Control Range	Diagnostic Note
   Pr-Seat Select	Passenger side rear select	ON / OFF	-

   OK: ON (Pr-Seat Select is on) appears on the screen.

NG: REPLACE CERTIFICATION ECU

OK: Go to next step

1. With "Pr-Seat Select" ON, check the DATA LIST for proper functioning of the touch sensor.

   Certification ECU:

   CERTIFICATION ECU DATA LIST



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Pr-Touch Sensor	Passenger side rear door touch sensor /ON or OFF	ON: Sensor is touched OFF: Sensor is not touched	-

   OK: When passenger side rear door touch sensor is touched, OK (Sensor is touched) appears on the screen.

NG:  Go to step  7

OK: Go to next step

1. After replacing the multiplex network door ECU rear RH with a normal one, check that the entry unlock function operates normally.

   OK: Entry unlock function operates normally.

NG: REPLACE CERTIFICATION ECU

OK: END (MULTIPLEX NETWORK DOOR ECU REAR RH IS DEFECTIVE)

1. Measure the voltage of the oscillator connector.

   Standard voltage

   VOLTAGE SPECIFIED CONDITIONS



   Tester Connection	Condition	Specified Condition
   4 (SEL) - Body ground	During Active Test	Below 1 V
   6 (SENS) - Body ground	Touch sensor is touched during Active Test	Below 1 V

Fig 1: Identifying Oscillator Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: REPLACE CERTIFICATION ECU

NG: Go to next step

1. Disconnect the r2 oscillator connector.
2. Disconnect the r1 antenna connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   RESISTANCE SPECIFIED CONDITIONS



   Tester Connection	Specified Condition
   r2-2 (SGT) - r1-6 (SGT2)	Below 1 Ω
   r2-3 (ANT1) - r1-5 (ANT1)	Below 1 Ω
   r2-8 (ANT2) - r1-2 (ANT2)	Below 1 Ω
   r2-9 (TRG-) - r1-1 (TRG-)	Below 1 Ω
   r2-2 (SGT) or r1-6 (SGT2) - Body ground	10 kΩ or higher
   r2-3 (ANT1) or r1-5 (ANT1) - Body ground	10 kΩ or higher
   r2-8 (ANT2) or r1-2 (ANT2) - Body ground	10 kΩ or higher
   r2-9 (TRG-) or r1-1 (TRG-) - Body ground	10 kΩ or higher

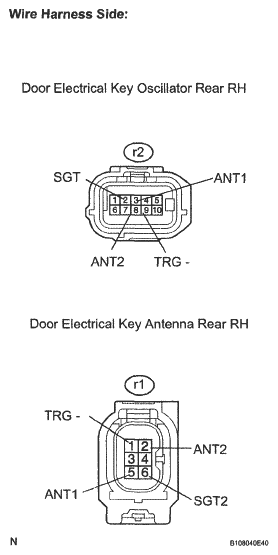

Fig 2: Identifying r2 Oscillator And r1 Antenna Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the U33 ECU connector.
2. Disconnect the r2 oscillator connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   RESISTANCE SPECIFIED CONDITIONS



   Tester Connection	Specified Condition
   U33-2 (SEL4) - r2-4 (SEL)	Below 1 Ω
   U33-27 (SEN4) - r2-6 (SENS)	Below 1 Ω
   U33-10 (CLG4) - r2-10 (CLG)	Below 1 Ω
   U33-11 (CG4B) - r2-5 (CLGB)	Below 1 Ω
   U33-2 (SEL4) or r2-4 (SEL) - Body ground	10 kΩ or higher
   U33-27 (SEN4) or r2-6 (SENS) - Body ground	10 kΩ or higher
   U33-10 (CLG4) or r2-10 (CLG) - Body ground	10 kΩ or higher
   U33-11 (CG4B) or r2-5 (CLGB) - Body ground	10 kΩ or higher

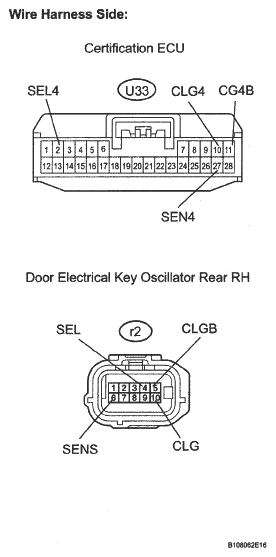

Fig 3: Identifying U33 ECU And r2 Oscillator Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE DOOR ELECTRICAL KEY OSCILLATOR REAR RH
