Parts Location

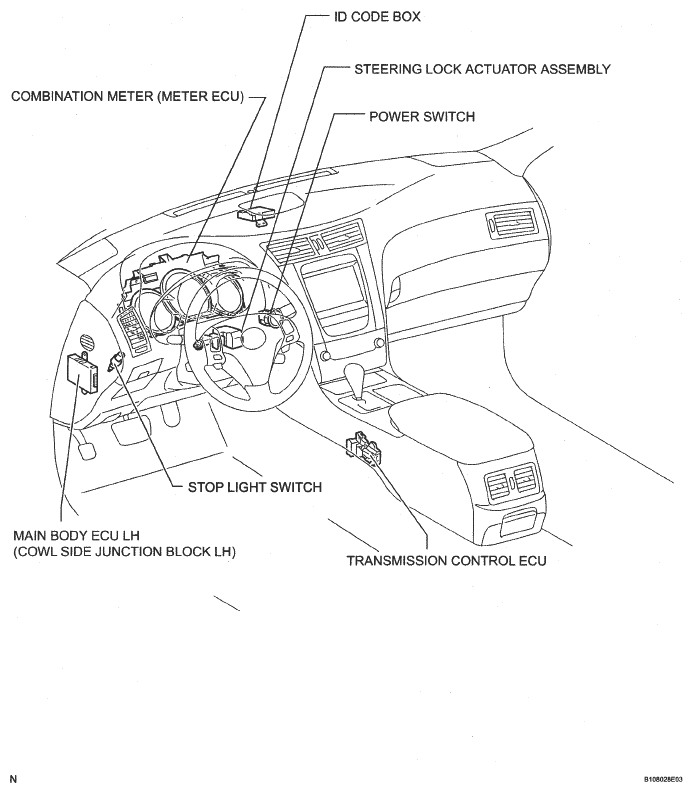

Fig 1: Identifying Smart Access System Parts Location (1 Of 3)
G05310989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

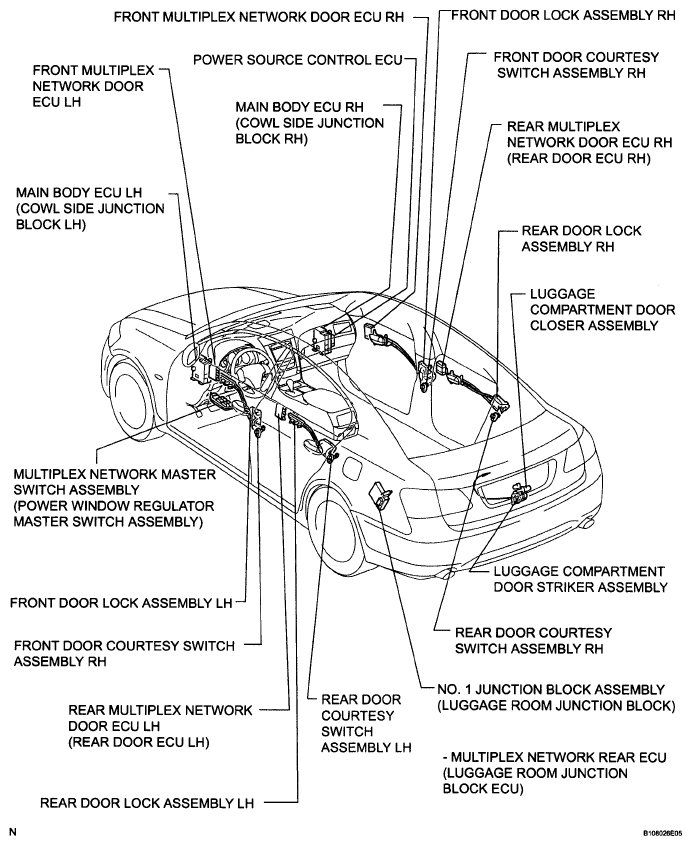

Fig 2: Identifying Smart Access System Parts Location (2 Of 3)
G05819344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

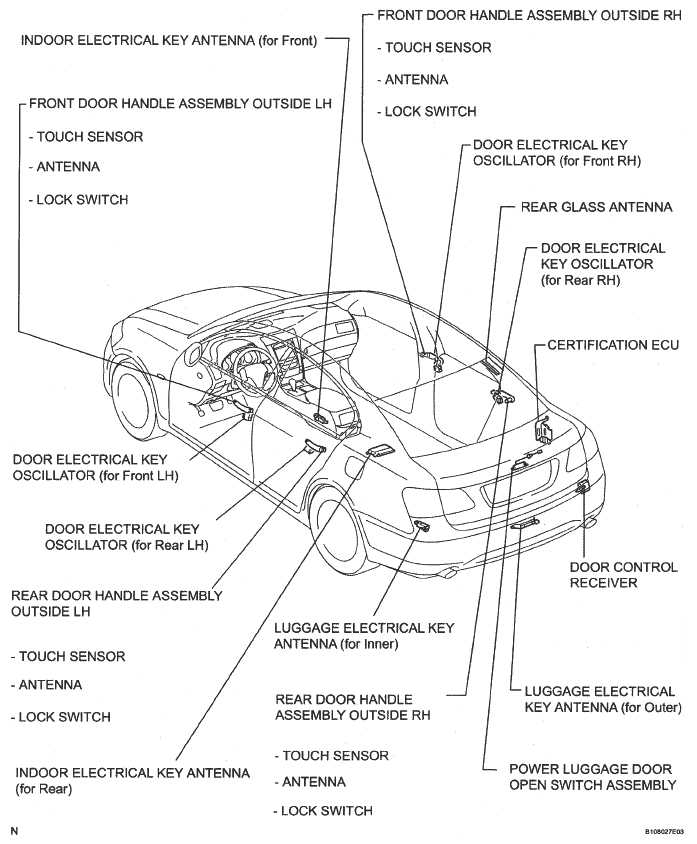

Fig 3: Identifying Smart Access System Parts Location (3 Of 3)
G05310991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
