Inspection Procedure

1. Check that the manual door lock and unlock function operates normally.

   OK: Manual door lock and unlock function operates normally.

NG:  GO TO POWER DOOR LOCK CONTROL SYSTEM

OK: Go to next step

1. Select the ACTIVE TEST, use the Techstream to generate a control command, and then check that the oscillator operates.

   Certification ECU:

   CERTIFICATION ECU ACTIVE TEST REFERENCE CHART



   Tester Display	Test Part	Control Range	Diagnostic Note
   D-Seat Outside Transmitter	Driver side oscillator	ON / OFF	-

   OK: When key is brought close to door oscillator that is OFF, indicator light on key illuminates.

OK: REPLACE CERTIFICATION ECU

NG: Go to next step

1. Disconnect the U28 ECU connector.
2. Disconnect the q2 oscillator connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   RESISTANCE SPECIFIED CONDITIONS



   Tester Connection	Specified Condition
   U28-33 (CLG1) - q2-10 (CLG)	Below 1 Ω
   U28-34 (CG1B) - q2-5 (CLGB)	Below 1 Ω
   U28-33 (CLG1) or q2-10 (CLG) - Body ground	10 kΩ or higher
   U28-34 (CG1B) or q2-5 (CLGB) - Body ground	10 kΩ or higher

Fig 1: Identifying U28 ECU And q2 Oscillator Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the q2 oscillator connector.
2. Disconnect the q1 antenna connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   RESISTANCE SPECIFIED CONDITIONS



   Tester Connection	Specified Condition
   q2-2 (SGT) - q1-6 (SGT2)	Below 1 Ω
   q2-3 (ANT1) - q1-5 (ANT1)	Below 1 Ω
   q2-8 (ANT2) - q1-2 (ANT2)	Below 1 Ω
   q2-9 (TRG-) - q1-1 (TRG-)	Below 1 Ω
   q2-2 (SGT) or q1-6 (SGT2) - Body ground	10 kΩ or higher
   q2-3 (ANT1) or q1-5 (ANT1) - Body ground	10 kΩ or higher
   q2-8 (ANT2) or q1-2 (ANT2) - Body ground	10 kΩ or higher
   q2-9 (TRG-) or q1-1 (TRG-) - Body ground	10 kΩ or higher

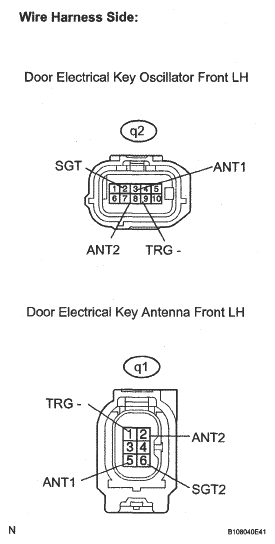

Fig 2: Identifying q2 Oscillator And q1 Antenna Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the q2 oscillator connector.
2. Disconnect the M10 ECU connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   RESISTANCE SPECIFIED CONDITIONS



   Tester Connection	Specified Condition
   q2-1 (+B) - M10-7 (OSCB)	Below 1 Ω
   q2-7 (GND) - M10-20 (OSCE)	Below 1 Ω
   q2-1 (+B) or M10-7 (OSCB) - Body ground	10 kΩ or higher
   q2-7 (GND) or M10-20 (OSCE) - Body ground	10 kΩ or higher

Fig 3: Identifying q2 Oscillator And M10 ECU Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the q1 oscillator connector.
2. Disconnect the M10 ECU connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   RESISTANCE SPECIFIED CONDITIONS



   Tester Connection	Specified Condition
   q1-3 (TRG+) - M10-18 (TRG+)	Below 1 Ω
   q1-3 (TRG+) or M10-18 (TRG+) - Body ground	10 kΩ or higher

Fig 4: Identifying q1 Oscillator And M10 ECU Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. After replacing the electrical key antenna front LH with a normal one, check that the entry lock and unlock functions operate normally.

   OK: Entry lock and unlock functions operate normally.

OK: END (ELECTRICAL KEY ANTENNA FRONT LH IS DEFECTIVE)

NG: Go to next step

1. After replacing the door electrical key oscillator front LH with a normal one, check that the entry lock and unlock functions operate normally.

   OK: Entry lock and unlock functions operate normally.

NG: REPLACE CERTIFICATION ECU

OK: END (DOOR ELECTRICAL KEY OSCILLATOR FRONT LH IS DEFECTIVE)
