System Diagram

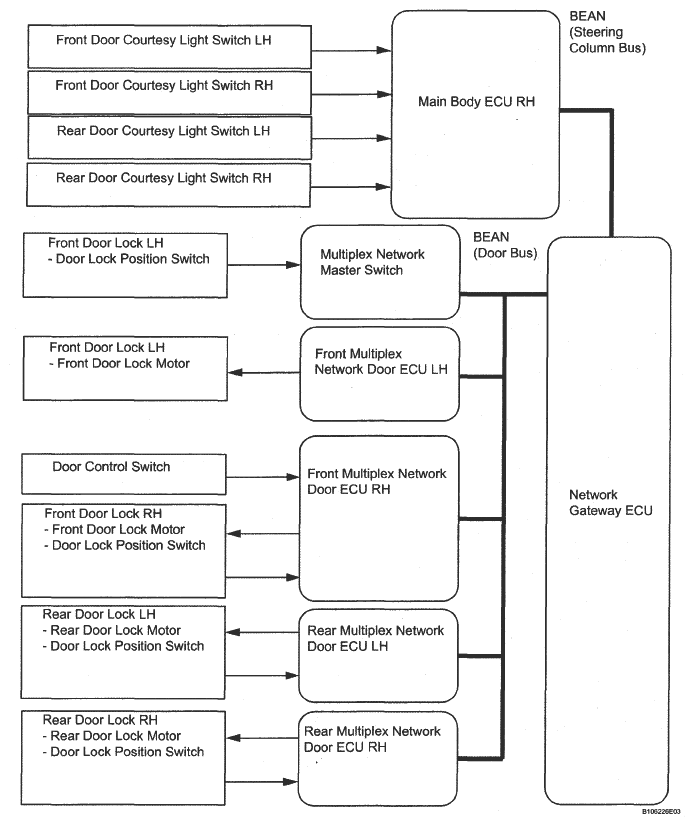

Fig 1: Power Door Lock Control System Diagram

G05310920

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table

COMMUNICATION REFERENCE CHART

Sender	Receiver	Signal	Line
Multiplex Network Master Switch	Main Body ECU RH	Driver side door key-linked switch lock signal Driver side door manual lock switch signal Driver side door lock position switch signal	BEAN
Front Multiplex Network Door ECU RH	Main Body ECU RH	Passenger side door manual lock switch signal Passenger side door lock position switch signal	BEAN
Rear Multiplex Network Door ECU LH	Main Body ECU RH	Rear LH side door lock position switch signal	BEAN
Rear Multiplex Network Door ECU RH	Main Body ECU RH	Rear RH side door lock position switch signal	BEAN
Main Body ECU RH	Front Multiplex Network Door ECU LH	Driver side door lock control signal	BEAN
Main Body ECU RH	Front Multiplex Network Door ECU RH	Passenger side door lock control signal	BEAN
Main Body ECU RH	Rear Multiplex Network Door ECU LH	Rear LH side door lock control signal	BEAN
Main Body ECU RH	Rear Multiplex Network Door ECU RH	Rear RH side door lock control signal	BEAN
