System Diagram

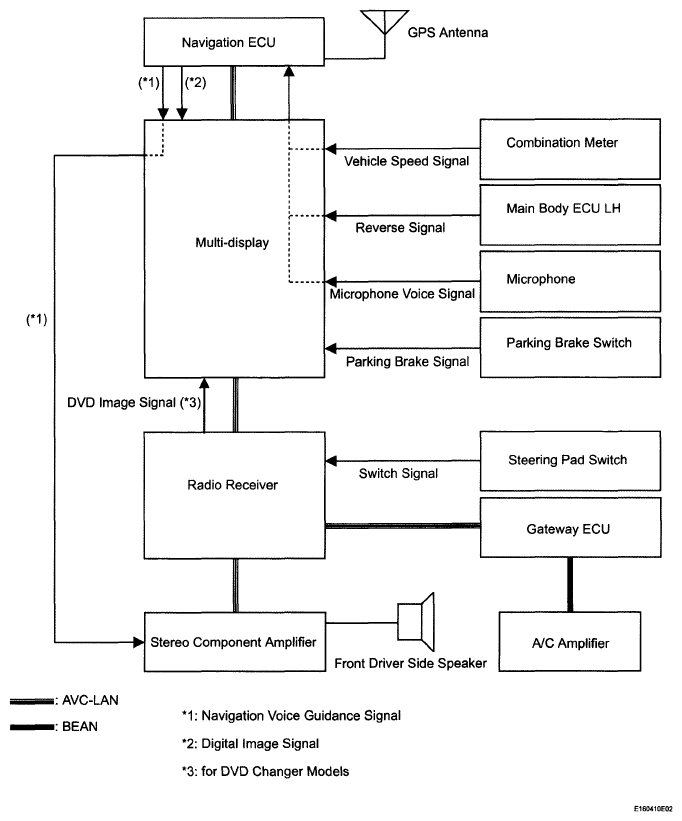

Fig 1: Navigation System Diagram
G05819832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
